C37-36A | COMPLETE CEILING INSTALLATION KIT WITH 2IN TO 3IN DROP ADJUSTMENT FOR 13IN TO 46IN SCREENS
C37-36A
COMPLETE CEILING INSTALLATION KIT WITH 2IN TO 3IN DROP ADJUSTMENT FOR 13IN TO 46IN SCREENS
Click image to enlarge
C37-36A
COMPLETE CEILING INSTALLATION KIT WITH 2IN TO 3IN DROP ADJUSTMENT FOR 13IN TO 46IN SCREENS
- UM : EA
- Estimated Weight: 15.4

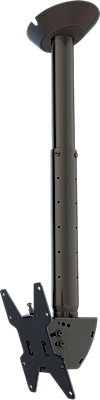

Includes VESA screen adapter, 2′-3′ adjustable extension column (EA23) and structural ceiling adapter (CA1C) for mounting on a single joist. Continuous tilt of 20° forward, 360° rotation. Incremental drop lengths provide perfect screen positioning.
Features:
- VESA compatible 75x75mm, 100x100mm, 200x100mm, 200x200mm
- 1″ incremental drop length adjustment
- Fast and easy installation
- Up to 20° of continuous tilt and 360° rotation
- Through-column cable routing for an uncluttered look
- Decorative covers to hide ceiling bolts for a finished look
- Pre-sorted hardware pack for easy installation
| TV size range | 13" – 46" |
|---|---|
| Weight capacity | 80lb (36kg) |
| Max mounting pattern | 200x200mm |
| VESA mounting patterns | 75x75mm, 100x100mm, 200x100mm, 200x200mm |
| Tilt | +20°/-0° |
| Rotation (yaw) | 360° |
| Drop length | 24" - 36" |
| Height adjustment | 1" increments |
| 1.5" NPT thread compatible | Yes |
| Mounting surface | wood joist, structural wood or structural concrete (accessory required HE4) |
| Joist spacing | single joist |
| Construction | high-grade cold rolled steel |
| Product finish | scratch resistant epoxy powder coat |
| Product weight | 12.6lb (5.7kg) |
| Package specifications | 28"x12"x9" |
| Color | black |
| Warranty | 10-years |
×
