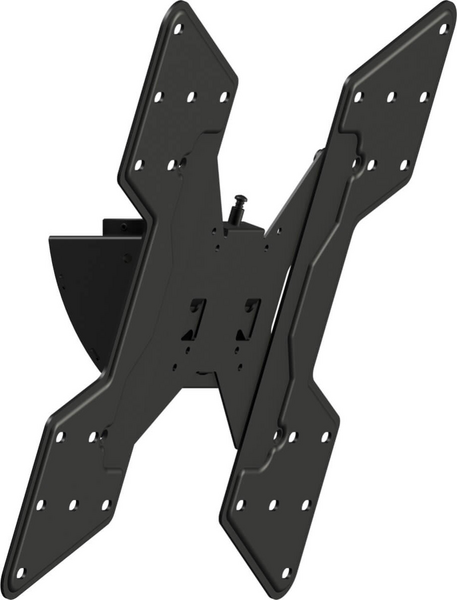

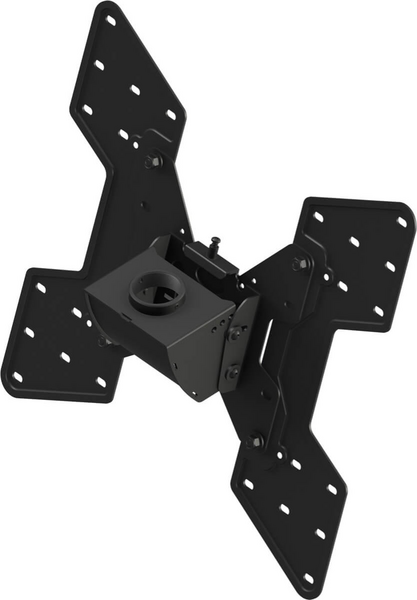

C47V | CEILING MOUNT BOX AND VESA SCREEN ADAPTOR ASSEMBLY FOR 13” TO 55” DISPLAYS

  • MAP: $147.59 / EA
  • List Price: $183.59 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
CEILING MOUNT BOX AND VESA SCREEN ADAPTOR ASSEMBLY FOR 13” TO 55” DISPLAYS
CEILING MOUNT BOX AND VESA SCREEN ADAPTOR ASSEMBLY FOR 13” TO 55” DISPLAYS
Click image to enlarge
CEILING MOUNT BOX AND VESA SCREEN ADAPTOR ASSEMBLY FOR 13” TO 55” DISPLAYS
CEILING MOUNT BOX AND VESA SCREEN ADAPTOR ASSEMBLY FOR 13” TO 55” DISPLAYS

C47V
CEILING MOUNT BOX AND VESA SCREEN ADAPTOR ASSEMBLY FOR 13” TO 55” DISPLAYS

  • UM : EA

Features:

  • VESA compatible 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x300mm, 400x400mm
  • Fast and easy installation
  • Pre-assembled securing screw
  • Up to 20° of continuous tilt and 360° rotation
  • Mounts to any 1.5″ NPT threaded pipe
TV size range 13” – 55”
Weight capacity 80lb (36kg)
Max mounting pattern 200x200mm
VESA mounting patterns 75x75mm, 100x100mm, 200x100mm, 200x200mm
Tilt +20°/-0°
Rotation (yaw) 360°
1.5" NPT thread compatible Yes
Mounting interface 1.5" NPT thread compatible
Construction high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Product weight 8lb (3.63kg)
Package specifications 10”x10”x5”
Color black
Warranty Limited Lifetime
