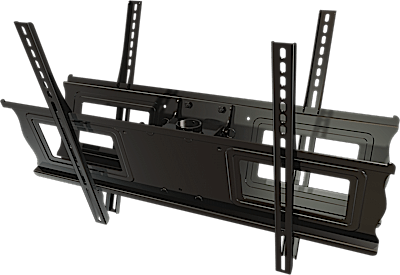

C63D | CEILING MOUNT BOX AND UNIVERSAL SCREEN ADAPTER ASSEMBLY FOR 37" TO 75" DUAL BACK TO BACK SCREENS
C63D
CEILING MOUNT BOX AND UNIVERSAL SCREEN ADAPTER ASSEMBLY FOR 37" TO 75" DUAL BACK TO BACK SCREENS
C63D
CEILING MOUNT BOX AND UNIVERSAL SCREEN ADAPTER ASSEMBLY FOR 37" TO 75" DUAL BACK TO BACK SCREENS
- UM : EA
- Estimated Weight: 26.0

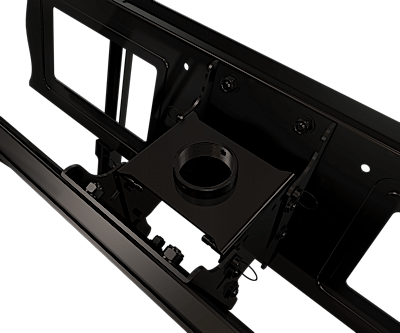

Attaches to standard 1.5″ threaded extension columns. Can be used as retrofit on existing columns or combine with Crimson E-series fixed extensions or EA-series adjustable extensions and CA ceiling adapters to complete the solution. Continuous tilt of 20° forward with 360° rotation. Pin-locking pre-set tilt positions at 5º, 10º, 15º and 20º. Makes a secure screen installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock the universal adapter in place. Compatible with all 1.5″ NPT threaded pipe.
Features:
- Universal design
- VESA compatible
- Fast and easy installation
- Up to 20° of continuous tilt and 360° rotation
- Pin-locking incremental tilt adjustment
- Post installation screen leveling without use of tools
- Mounts to any 1.5″ NPT threaded pipe
- Pre-sorted hardware pack for easy installation
| TV size range | 37” – 75” |
|---|---|
| Weight capacity | 150lb (68kg) each, 300lb (136kg) total |
| Max mounting pattern | 723x501mm |
| VESA mounting patterns | 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm |
| Tilt | +20°/-0° |
| Roll (side to side) | 6° tool less screen leveling |
| Rotation (yaw) | 360° |
| 1.5" NPT thread compatible | Yes |
| Mounting interface | 1.5” NPT thread compatible |
| Construction | high-grade cold rolled steel |
| Product finish | scratch resistant epoxy powder coat |
| Product weight | 24.5lb (11.1kg) |
| Package specifications | 38”x11”x6” |
| Color | black |
| Warranty | 10-years |
