CAB1 | I-BEAM CLAMP

  • MAP: $146.39 / EA
  • List Price: $182.39 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
I-BEAM CLAMP
I-BEAM CLAMP
I-BEAM CLAMP
I-BEAM CLAMP
Click image to enlarge
I-BEAM CLAMP
I-BEAM CLAMP
I-BEAM CLAMP
I-BEAM CLAMP

CAB1
I-BEAM CLAMP

  • UM : EA
  • Estimated Weight: 9.8

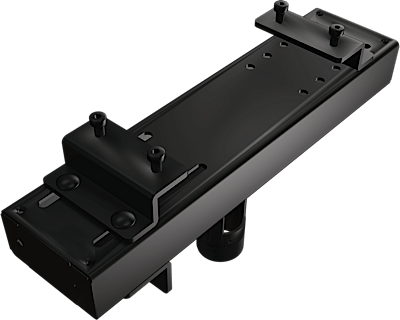

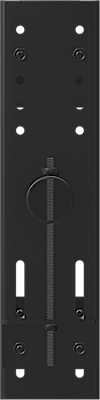

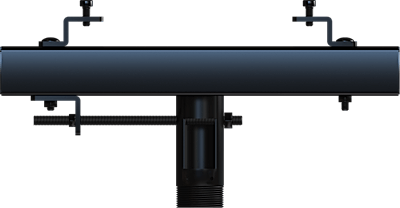

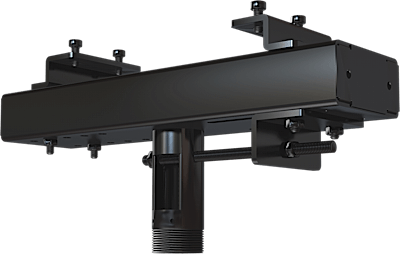

Heavy duty I-beam clamp compatible with all standard 1.5″ NPT interfaces weighing up to 350lb. Combine with Crimson E-series fixed extensions or EA-series adjustable extensions. Adapter mounts to I-beams up to 12″.

Features:

  • Mounts to I-beams up to 12″
  • Compatible with all ceiling extensions and components that use standard 1.5″ NPT interface
  • Through-column cable routing for an uncluttered look (fits standard VGA connector)
Weight capacity 350lb (159kg)
1.5" NPT thread compatible Yes (all 1-1/2" schedule 40 11.5 NPT columns with standard 1.5" NPT interface)
Mounting surface I-beam
Construction high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Product weight 9lb (4.1kg)
Package specifications 16"x8"x5"
Color black
Warranty 10-years
