CAT3 | TRUSS CEILING ADAPTER

  • MAP: $64.79 / EA
  • List Price: $80.39 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 30
  • Sign In or Submit RFQ for accurate lead times
TRUSS CEILING ADAPTER
Click image to enlarge

CAT3
TRUSS CEILING ADAPTER

  • UM : EA
  • Estimated Weight: 3.2

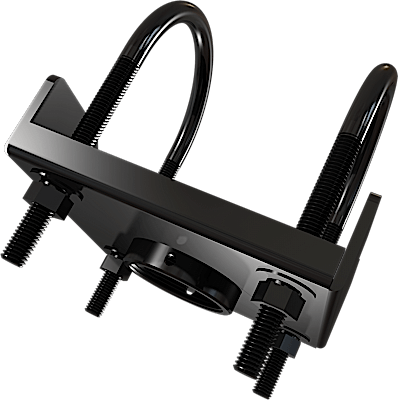

Truss ceiling adapter compatible with all standard 1.5″ NPT interfaces weighing up to 400lb. Adapter mounts to any round, square or retangular truss and i-beams up to 3″(76mm) wide by 3.5″(89mm) high using heavy duty 10mm U-bolts.

Features:

  • Attaches to round, square, or rectangular trusses up to 3″ wide and 3 ½” high
  • Heavy duty 10mm U-bolts
  • Compatible with all ceiling extensions and components that use standard 1.5″ NPT interface
Weight capacity 400lb (181kg)
1.5" NPT thread compatible Yes (all 1-1/2" schedule 40 11.5 NPT columns with standard 1.5" NPT interface)
Mounting surface round truss 0.75"(19mm) to 3"(76mm) in diameter, square or rectangular truss and i-beams up to 3"(76mm) wide x 3.5"(89mm) high
Construction high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Product weight 2lb (0.9kg)
Package specifications 7"x6"x3"
Color black
Warranty 10-years
