CBT 100LA-LS | (EN54 LIFE/SAFETY) STRAIGHT LINE ARRAY COLUMN WITH 16 X 2” DRIVERS AND CONSTANT BEAMWIDTH

  • MAP: $1,210.00 / EA
  • List Price: $1,210.00 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 1
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
(EN54 LIFE/SAFETY) STRAIGHT LINE ARRAY COLUMN WITH 16 X 2” DRIVERS AND CONSTANT BEAMWIDTH
Click image to enlarge

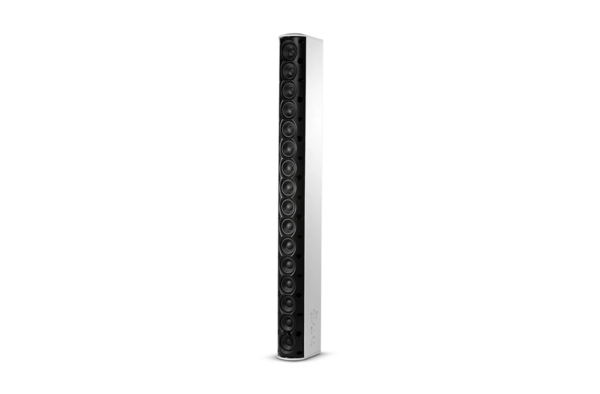

CBT 100LA-LS
(EN54 LIFE/SAFETY) STRAIGHT LINE ARRAY COLUMN WITH 16 X 2” DRIVERS AND CONSTANT BEAMWIDTH

  • UM : EA

The CBT 100LA-LS is a line array column loudspeaker featuring sixteen 50 mm (2 in) drivers. It employs Constant Beamwidth Technology, using analog delay beam-forming and amplitude tapering to achieve consistent vertical coverage and minimize vertical beaming and out-of-coverage lobing.

Features:

  • Constant Beamwidth Technology for consistent directivity
  • EN 54-24 compliant for life safety
  • Switchable vertical pattern coverage: 40° and 15°
  • Switchable voicing: music mode and speech mode
  • Dynamic SonicGuard overload protection
  • Swivel (pan)/tilt wall bracket included
  • Built-in 70V/100V transformer
  • 8 ohm direct capability
Drivers Sixteen 50 mm Full-Range
Frequency Range (-10dB) 120 Hz – 20 kHz
Coverage Angle Broad Vertical Switch Settings
Sensitivity (2.83V @ 1m) Narrow 96 dB (2 kHz - 14 kHz), Music 93 dB (300 Hz - 18 kHz)
EN54 Sensitivity (@ 4m) 76 dB
Nominal Impedance 8Ω
Power Rating 325 W (1300 W peak), 2 hrs
Maximum SPL (1m) Narrow 121 dB cont ave (127 peak), Music 118 dB cont ave (124 peak)
EN54 Max SPL (@ 4m) 92 dB
Transformer Taps 120W, 60W, 30W, 15W (70V only), and 8Ω thru
