CBT 200LA-1 | 200 CM (6.6 FT) TALL CONSTANT BEAMWIDTH TECHNOLOGY LINE ARRAY COLUMN WITH THIRTY-TWO 50 MM (2 IN)

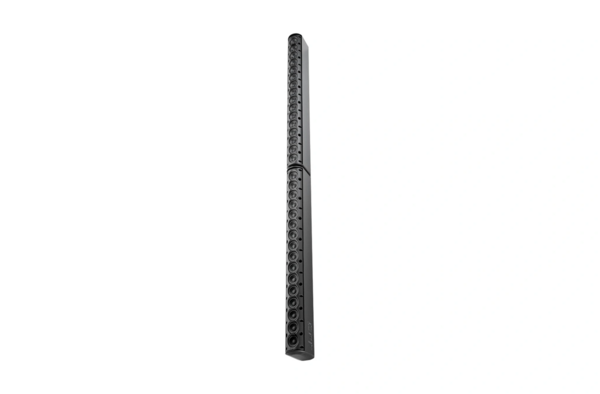

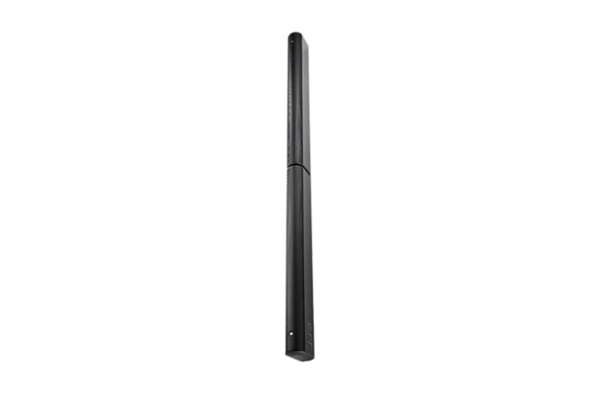

The CBT 200LA-1 is a 200 cm tall line array column speaker featuring Constant Beamwidth Technology. It incorporates thirty-two 50 mm (2 inch) drivers arranged to provide consistent pattern control and coverage. The speaker employs analog delay beam-forming and amplitude tapering techniques to maintain uniform vertical coverage and minimize lobing effects commonly observed in column speakers.

• Patented Constant Beamwidth Technology provides wide-band constant directivity coverage and reduces out-of-coverage lobing
• 200 cm (6.6 ft) height extends pattern control to lower frequencies
• Vertical pattern coverage switchable between 30° and 15° for medium or long-throw coverage
• Asymmetrical Progressive-Gradient vertical coverage directs more sound toward the far area, making sound levels more consistent; extent adjustable
• Narrow width of 98.5 mm (3.8 in) fits various applications
• Dynamic Sonic-Guard low-audibility overload protection

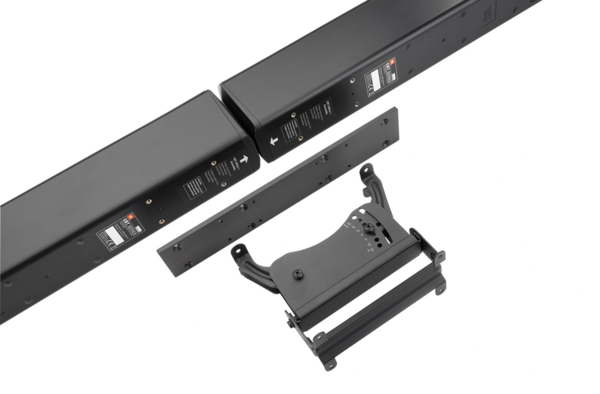

• Swivel (pan)/tilt wall bracket included
• Built-in 70V/100V transformers, plus direct capability

Drivers	Thirty-two 50 mm full-range drivers
Frequency Range (-10dB)	80 Hz – 20 kHz
Sensitivity (speech mode)	95 dB (2 kHz – 5 kHz)
Impedance	8 ohm per half, 4 ohm total
Power Rating	650W (2600W peak) for 2 hrs, 400W (1600W peak) for 100 hrs
Max SPL (speech mode, narrow)	123 dB continuous average (129 dB peak)
70V/100V Transformer	Switchable taps of 120W, 60W, 30W, and direct 8 ohm
Enclosure	Fiberglass reinforced ABS cabinet with painted aluminum baffle
Outdoor Capability	IP-55 rated with optional panel cover; UV, moisture, acid-air, and salt-spray resistant
