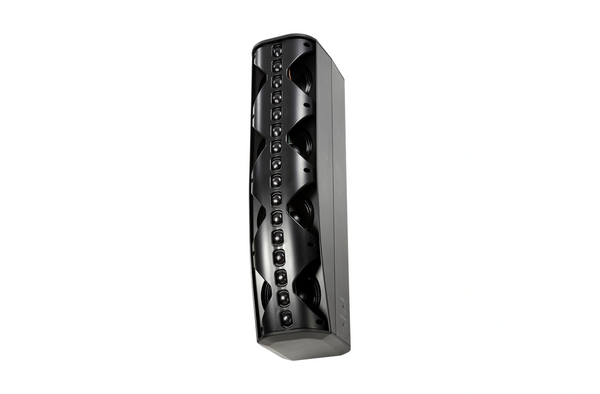

CBT 70J-1 | 2-WAY PASSIVE COLUMN LINE ARRAY SPEAKER, 16 X 1” AND 4 X 5” DRIVERS, ASYMMETRICAL COVERAGE / BLACK

CBT 70J-1
2-WAY PASSIVE COLUMN LINE ARRAY SPEAKER, 16 X 1” AND 4 X 5” DRIVERS, ASYMMETRICAL COVERAGE / BLACK

JBL CBT 70J-1 is a black, two-way passive column line array speaker designed to deliver more consistent sound from the front of a listening area to the back. Its asymmetrical vertical coverage directs more sound toward distant listeners, making it useful for speech and music in churches, lecture halls, auditoriums, and other installed sound applications.

Constant Beamwidth Technology helps control vertical coverage across a broad frequency range. Installers can select a 25° vertical pattern for longer throws or a 45° pattern for broader coverage, while switchable speech and music voicing adapts the response to the application.

Four 5" low-frequency drivers and sixteen 1" tweeters provide two-way performance in a narrow cabinet. The included swivel/tilt wall bracket supports aiming during installation.

FEATURES

• Asymmetrical vertical coverage sends more sound toward far area of room to make front-toback sound levels more consistent.
• Components: Sixteen 25 mm (1 in) soft dome tweeters and four 125 mm (5 in) high-power LF drivers,
   arranged coaxially.
• Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for
   long-throw applications.
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
• Dynamic SonicGuard™ overload protection of HF devices
• Swivel (pan) / tilt wall bracket included.

Use Options

• Houses of worship needing speech and music coverage across several seating rows.
• Lecture halls and school auditoriums with listeners at different distances.
• Multipurpose rooms used for presentations, meetings, and events.
• Community centers and municipal assembly spaces.
• Hospitality and attraction venues where a narrow speaker profile is useful.
