CBT 70JE-1 | 70 CM EXTENSION FOR CBT 70J-1 LINE ARRAY, 4 X 5” DRIVERS. 500W CONTINUOUS PINK NOISE, 8 OHMS,
CBT 70JE-1
70 CM EXTENSION FOR CBT 70J-1 LINE ARRAY, 4 X 5” DRIVERS. 500W CONTINUOUS PINK NOISE, 8 OHMS,
CBT 70JE-1
70 CM EXTENSION FOR CBT 70J-1 LINE ARRAY, 4 X 5” DRIVERS. 500W CONTINUOUS PINK NOISE, 8 OHMS,
- UM : EA
- Estimated Weight: 30.0

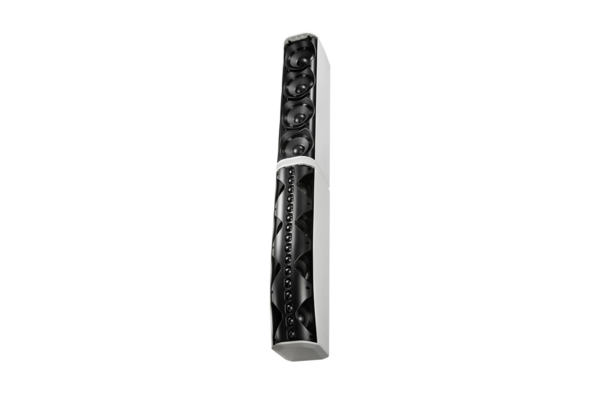

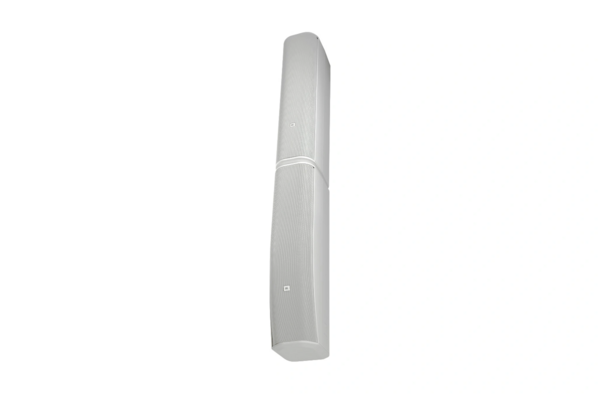

The CBT 70JE-1 Extension is an add-on module designed for use with the CBT 70J-1 line array column speaker. It features a reinforced baffle and, when connected to the CBT 70J-1, extends the bass frequency response, enhances pattern control, and increases overall sound output levels. The combined system employs Constant Beamwidth Technology, which uses analog beamforming and amplitude tapering to achieve consistent vertical coverage across the listening area. This technology minimizes narrow vertical beaming and out-of-coverage lobing commonly observed in passive column speakers.
- Four 125 mm (5 in) high-power LF drivers
- 500 Watt power handling
- Built-in crossover network for combining with CBT 70J-1
- Coupler plate included
- Extended pattern control to 400 Hz (± 20°) and to 200 Hz for off-axis cancellation
- Extended bass response to 45 Hz
- Sixteen 25 mm (1 in) soft dome tweeters and eight 125 mm (5 in) high-power LF drivers
- Patent-pending Constant Beamwidth Technology for constant directivity and reduced lobing
- Vertical pattern coverage switchable between 45° and 25°
- Switchable voicing: flat response in music mode or mid-range presence peak in speech mode
- Coupler plate and wall swivel (pan/tilt) bracket included, compatible with standard brackets
| Drivers | Eight 130 mm LF drivers, sixteen 25 mm HF drivers |
|---|---|
| Frequency Range (-10dB) | 45 Hz – 20 kHz |
| Coverage Angle | Vertical switchable narrow 25° ±10°, broad 45° ±10°; Horizontal 150° ±20° |
| Impedance | 4 ohms |
| Power Rating | 1000 W (4000 W peak) 2 hrs, 700 W (2800 W peak) 100 hrs |
| Maximum SPL (1m) | Narrow speech 125 dB cont ave (131 peak), music 121 dB cont ave (127 peak); Broad speech 124 dB cont ave (130 peak), music 120 dB cont ave (126 peak) |
| Outdoor Capability | IP-55 rated with optional panel cover; UV, moisture, acid-air/salt-spray resistant |
| Enclosure | Fiberglass-reinforced ABS cabinet with painted aluminum baffle |
| High Frequency Drivers | 16 pcs dual magnet neodymium, coated diaphragm, shielded |
| Low Frequency Drivers | 8 pcs dual magnet neodymium, coated diaphragm, shielded |
