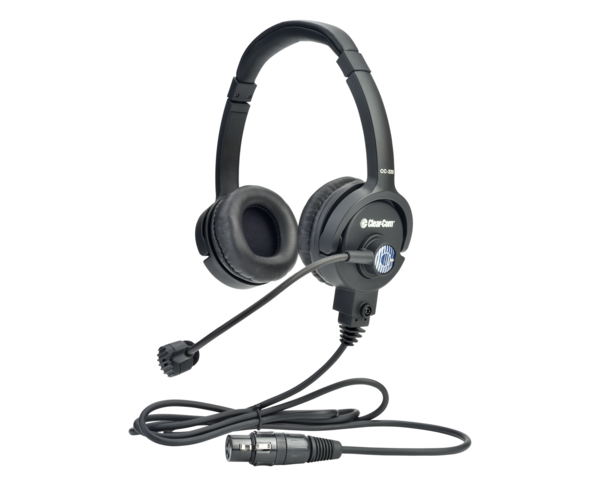

CC-220-MD4 | HEADSET: DOUBLE EAR, LIGHT WEIGHT, MINI DIN (M) 4 PIN WITH DYNAMIC MIC, BOOM SWITCH.

  • MAP: $560.00 / EA
  • List Price: $560.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
HEADSET: DOUBLE EAR, LIGHT WEIGHT, MINI DIN (M) 4 PIN WITH DYNAMIC MIC, BOOM SWITCH.
Click image to enlarge

CC-220-MD4
HEADSET: DOUBLE EAR, LIGHT WEIGHT, MINI DIN (M) 4 PIN WITH DYNAMIC MIC, BOOM SWITCH.

  • UM : EA

The CC-220-MD4 is a lightweight headset featuring double-ear design. It is equipped with cardioid dynamic microphones.

Features:

  • Dynamic cardioid microphone
  • 20Hz–20KHz frequency response
  • Leatherette or foam earpads
  • Flexible gooseneck microphone
  • Boom rotation mute switch
  • Interchangeable cabling
  • Fully serviceable headset
  • Rugged design
Headphone Type Closed-back
Headphone Driver 36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
Headphone Frequency Response 20Hz - 20kHz
Headphone Impedance200Ω ±30%; at 1kHz typical
Microphone Element Dynamic
Microphone Driver 15mm, neodymium magnet
Microphone Polar Pattern Cardioid
Microphone Frequency Response 250Hz - 20kHz
Maximum Power 500mW
Microphone Open Circuit Sensitivity -64dB ±3.5dB; (0dB=1V/1Pa, at 1kHz, typical)
