CDI2X600 | 2CH POWER AMPLIFIER 600W PER CHANNEL @ 4OHM, 8OHM, 70V, 100V - WITH DSP & NETWORK CONTROL
CDI2X600
2CH POWER AMPLIFIER 600W PER CHANNEL @ 4OHM, 8OHM, 70V, 100V - WITH DSP & NETWORK CONTROL
CDI2X600
2CH POWER AMPLIFIER 600W PER CHANNEL @ 4OHM, 8OHM, 70V, 100V - WITH DSP & NETWORK CONTROL
- UM : EA
- Estimated Weight: 19.0
The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|600 offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more. Designed for ease-of-use in a variety of applications, the 2|600 is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.
Features:
- DriveCore Technology – Crown’s proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.
- Network Control and Monitoring – Through Harman’s HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network.
- DSP – On-board Digital Signal Processor in each amplifier allows for custom configuration. DSP includes: Input Router, Input Delay – Up to 1000ms, Input Parametric EQ – 8 band, Crossover, Output Parametric EQ – 8 band, Output Delay – Up to 100ms, LevelMAX Limiter
- BLU link (BL models only) – Both receive and send channels over HARMAN’s 256 channel, fault-tolerant audio BUS, BLU link
- Direct Drive 70/100Vrms Output – Each output channel is capable of provide either 70V or 100V for high impedance applications.

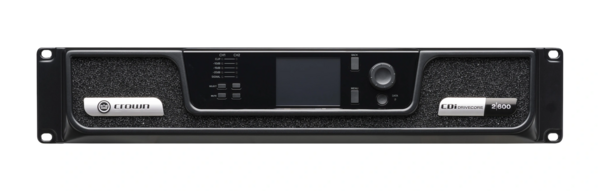

- Front-Panel Interface – Completely configure the amplifier using an intuitive front-panel interface.
- GPIO/AUX Port – Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.
| Blu link | No |
|---|---|
| Channels | 2 |
| Sensitivity (for full rated power at 8 ohms) | 0.7V RMS |
| Rated power output (per channel @ 4 ohms) | 600W |
| Analog input signal to noise ratio (ref. rated power, 100v, 20hz - 20khz) at 8 ohms) | > 104dB |
| Thd (full rated power, 20 hz - 20 khz) | 0.35% |
| Damping factor (20 hz to 100 hz) | > 1000 |
| Frequency response (8?, 20 hz - 20 khz) | +/-0.5dB |
| Crosstalk (below rated power) 20 hz to 1 khz | > 80dB |
| Input impedance (nominally balanced, nominally unbalanced) | 20 kO balanced, 10 kO unblanced |
| Power supply connector | "Standard IEC type 320 inlet for detachable connector 100 – 240V~" |
| Product Specifications | |
|---|---|
| Brand | Crown |
