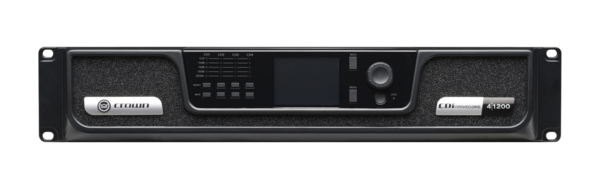

CDI4X1200 | 4 CHANNEL POWER AMPLIFIER 1200W PER CHANNEL 70V 100V, 4/8OHM, DIGITAL SIGNAL PROCESSING
CDI4X1200
4 CHANNEL POWER AMPLIFIER 1200W PER CHANNEL 70V 100V, 4/8OHM, DIGITAL SIGNAL PROCESSING
CDI4X1200
4 CHANNEL POWER AMPLIFIER 1200W PER CHANNEL 70V 100V, 4/8OHM, DIGITAL SIGNAL PROCESSING
- UM : EA
- Estimated Weight: 24.0
The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|1200 offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more. Designed for ease-of-use in a variety of applications, the 4|1200 is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.
| Blu link | No |
|---|---|
| Channels | 4 |
| Sensitivity (for full rated power at 8 ohms) | 0.7V RMS |
| Rated power output (per channel @ 4 ohms) | 1200W |
| Analog input signal to noise ratio (ref. rated power, 100v, 20hz - 20khz) at 8 ohms) | > 104dB |
| Thd (full rated power, 20 hz - 20 khz) | 0.35% |
| Damping factor (20 hz to 100 hz) | > 1000 |
| Frequency response (8ω, 20 hz - 20 khz) | +/-0.25dB |
| Crosstalk (below rated power) 20 hz to 1 khz | > 80dB |
| Input impedance (nominally balanced, nominally unbalanced) | 20 kΩ balanced, 10 kΩ unblanced |
| Power supply connector | "20A IEC connector, 100 – 240V" |
| Product Specifications | |
|---|---|
| Brand | Crown |
