CDI4X600 | 4CH 600W PER CHANNEL DSP POWER AMPLIFIER, NETWORK CONTROL, 2/4/8OHM 70V/100V, 2RU
CDI4X600
4CH 600W PER CHANNEL DSP POWER AMPLIFIER, NETWORK CONTROL, 2/4/8OHM 70V/100V, 2RU
CDI4X600
4CH 600W PER CHANNEL DSP POWER AMPLIFIER, NETWORK CONTROL, 2/4/8OHM 70V/100V, 2RU
- UM : EA
- Estimated Weight: 19.0

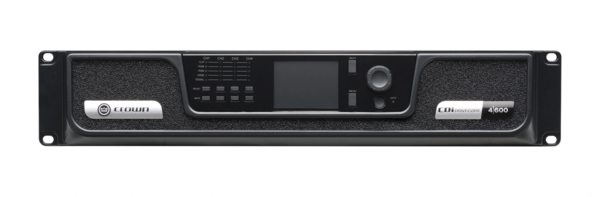

Crown CDi 4|600 is a 4-channel DriveCore commercial power amplifier delivering up to 600 watts per channel for medium-sized installed audio systems. It combines amplification, onboard DSP, network control and monitoring, and a front-panel user interface in a compact 2RU chassis.
Each channel can directly drive traditional low-impedance loudspeakers or 70V and 100V distributed speaker systems without requiring external step-up transformers. The CDi 4|600 provides 600W per channel at 4ohm, 8ohm, 70V, or 100V, making it especially useful for commercial installations where different speaker system types or substantial distributed-audio loads need to be powered from a single amplifier platform.
Built-in DSP and preloaded JBL loudspeaker tunings help simplify system setup for compatible JBL commercial and installed speakers. Common applications include houses of worship, cinemas, restaurants, bars, lounges, schools, hospitality spaces, entertainment venues, paging systems, and other commercial AV installations.
| Blu link | No |
|---|---|
| Channels | 4 |
| Sensitivity (for full rated power at 8 ohms) | 0.7V RMS |
| Rated power output (per channel @ 4 ohms) | 600W |
| Analog input signal to noise ratio (ref. rated power, 100v, 20hz - 20khz) at 8 ohms) | > 104dB |
| Thd (full rated power, 20 hz - 20 khz) | 0.35% |
| Damping factor (20 hz to 100 hz) | > 1000 |
| Frequency response (8 ohm, 20 hz - 20 khz) | +/-0.25dB |
| Crosstalk (below rated power) 20 hz to 1 khz | > 80dB |
| Input impedance (nominally balanced, nominally unbalanced) | 20 kOhms balanced, 10 kOhms unblanced |
| Dimensions (inches) (w x h x d) (depth not including 1.3 inch front panel protrusion) | 19 x 3.5 x 12.25 |
| Weight | 16.3 lbs (7.39 kg) |
| Power supply connector | 15A IEC connector, 100 – 240V |
| Product Specifications | |
|---|---|
| Brand | Crown |
