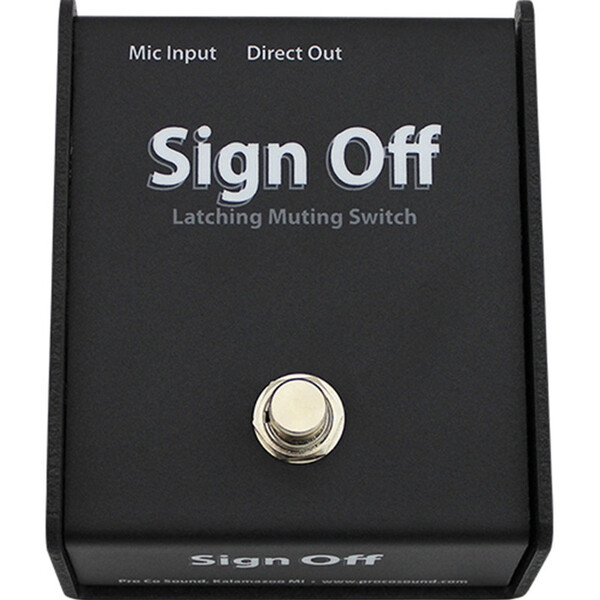

The ProCo Model CDSO "Sign Off" Latching Microphone Muting Switch is a
simple microphone signal muting device that offers clean reliable
performance with any balanced or floating low-impedance (150 ohm
nominal) microphone or signal source. The Sign Off is ideally suited
for use in broadcast, disc jockey, sports announcing, boardroom, and
live entertainment applications when the need to temporarily mute a
microphone output is required.
To mute the microphone signal, the user simply depresses and actuates
the switch. The Sign Off is a latching muting switch, so the signal
will remain muted until the switch is depressed and actuated again.
The switch on the Sign Off may either be actuated by hand or the unit
may be used as a footswitch.
Connections between the Sign Off and the microphone or signal source and
to the sound system are made with standard microphone cables.

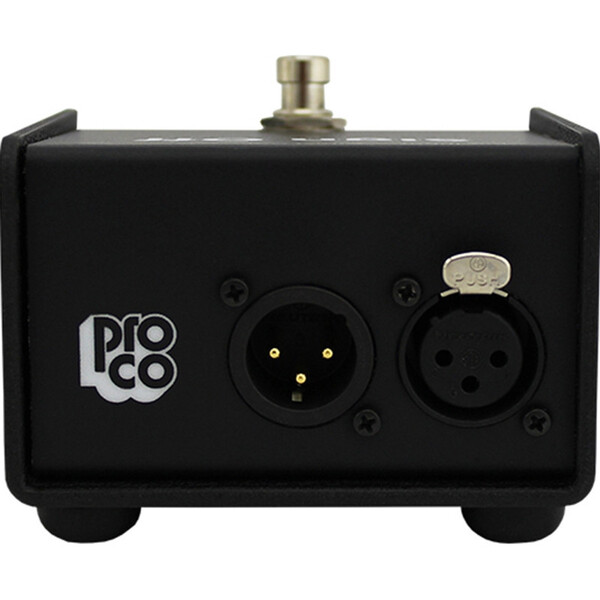

A female XLR-type connector is provided for Mic Input and a Male
XLR-type connector is provided for Direct Out. The Sign Off enclosure
is formed of a 16-gauge steel top and a rugged 11-gauge, black epoxy
painted steel base. Steel provides excellent magnetic shielding from
60Hz AC hum fields. All control and connector function graphics are
identified on a textured polycarbonate overlay. The enclosure is with
(4) non-conductive, anti-skid feet on the base of the unit. Top-quality
connectors and switches provide trouble-free service even in abusive
situations such as remote broadcast and recording operations.
- Noiseless Latching Microphone Muting Switch
- For Use with Both Dynamic and Condenser Microphones
- Passive Design Requires No Batteries or Phantom Power to Operate
- Can Be Hand-Actuated or Used as a Footswitch
- Reliable Mechanical Switch
- Connects With Standard Microphone Cables
