CHAMMQ500MPLUSWITHCASE | CHAMSYS MAGICQ MQ500M+ STADIUM CONSOLE W/ CASE, 400 UNIVERSES DIRECT FROM CONSOLE, DUAL 15" DISPLAYS
CHAMMQ500MPLUSWITHCASE
CHAMSYS MAGICQ MQ500M+ STADIUM CONSOLE W/ CASE, 400 UNIVERSES DIRECT FROM CONSOLE, DUAL 15" DISPLAYS
CHAMMQ500MPLUSWITHCASE
CHAMSYS MAGICQ MQ500M+ STADIUM CONSOLE W/ CASE, 400 UNIVERSES DIRECT FROM CONSOLE, DUAL 15" DISPLAYS
- UM : EA
MagicQ MQ500M+ Stadium supports 400 universes direct from the console without the need for external processing. MQ500M+ introduces the ability to expand screen real estate via its two Display Port++ External Monitor ports, and adds inbuilt Wi-Fi for connection of Remote Focus application and an inbuilt 4-port Gigabit Network Switch.
MQ500M+ features RGB-illuminated faders and encoder playbacks, with 15 fully-motorised fader playbacks, 15 encoder playbacks and 12 backlit multi-purpose Macro/Execute/Playbacks/Palette keys, giving the console a total of 42 playbacks and providing programmers with a powerful work station well-suited for Concert & Touring, TV & Broadcast, Live Events, House of Worship and Theatre applications.

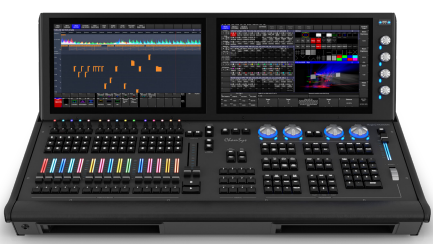

MQ500M+ also features dual HD resolution multi-touch 15” displays with adjustable viewing angles and multi-touch gesture support, for a more intuitive workflow. For additional control, connect a MagicQ MQ500M Stadium Wing and get even more playbacks and another touchscreen display as well.
MQ500M+ Stadium has inbuilt MagicVis 3D visualiser with high quality beam and gobo rendering, enabling you to pre-program shows offline and save time onsite. This versatile console comes with 4 DMX ports, an intensity wheel and 100-mm split crossfaders for theatre control.
Features:
- 400 universes direct from the console
- 15 fully motorised fader playbacks
- 15 encoder playback with RGB indicators
- 12 multi-purpose Macro/Executes/Playbacks keys
- RGB illumination of playbacks
- Backlit buttons
- Dual Inbuilt 15" Multi HD touch displays
- Two Display Port++ External Monitor Support
- Inbuilt Wi-Fi for connection of Remote Focus application
- Inbuilt 4-port Gigabit Network Switch
- 4 DMX ports
- Audio In/Out on the Rear Panel
- Power Out for MQ500M Stadium Wing
- Up to 8 touch displays support (2 Internal, 2 External, 4 via remote network)
- Dual motorised 100mm crossfaders ideal for Theatre
- Inbuilt MagicVis Visualiser with full rendering of beams and gobos
| Universes direct from the console (via Artnet/sACN/Pathport) | 400 |
|---|---|
| Direct DMX Outputs | 4 |
| Motorised Playbacks | 15 |
| Encoder Playbacks | 15 |
| Macro/Execute/Playback Section keys | 12 |
| Total no of Playbacks | 42 (15+15+12) |
| Dual Motorised Cross Faders | Yes |
| Attribute Encoders | 8 |
| Backlit Keys | Yes |
| Illuminated Playback/Encoders with RGB control | Yes |
| Intensity Wheel | 1 |
| Network Ports | 4 (Gigabit) |
| In-built Wi-Fi | Yes |
| Inbuilt 15" HD Multi-Touch Displays | 2 |
| External Monitors DP++ Port | 2 |
| USB Ports, including 2 High Power USBs | 6 |
| Audio Input (1 channel, 7 band) | Yes |
| Audio Input | Yes |
| Audio Output | Yes |
| MIDI Ports 1 in and out | Yes |
| LTC Timecode Ports in and out | Yes |
| Remote Input | Yes |
| Inbuilt UPS | Yes, uses 12v Lead-Acid Battery |
| Front Storage Pockets | 2 |
| Power Rating | Max 3.45A @ 100V A.C, Min 1.9A @ 240V A.C |
| Max Power Consumption (mains) | 456w |
