CHAMMQDIN | CHAMSYS MAGICQ DIN, 24 DMX UNIVERSES, BUILT-IN WIFI, FOUR 10SCENE CONNECTION PORTS
CHAMMQDIN
CHAMSYS MAGICQ DIN, 24 DMX UNIVERSES, BUILT-IN WIFI, FOUR 10SCENE CONNECTION PORTS
CHAMMQDIN
CHAMSYS MAGICQ DIN, 24 DMX UNIVERSES, BUILT-IN WIFI, FOUR 10SCENE CONNECTION PORTS
- UM : EA
- Estimated Weight: 25.0

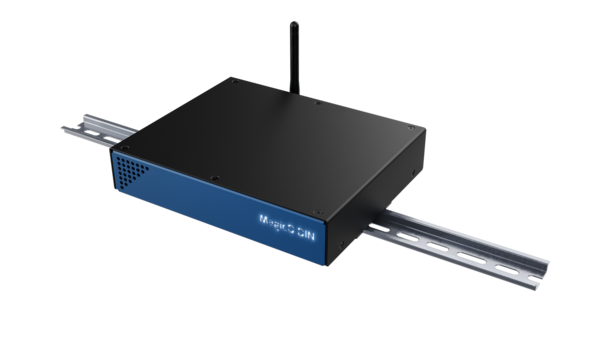

The full power of MagicQ software in a DIN rail mount solution.
MagicQ DIN supports all MagicQ features, including scheduled events, UDP, OSC and other remote protocols, making it ideal for cabinet installation in control rooms and suitable for theatres, houses of worship, and any venue requiring powerful control that offers the advanced capabilities of MagicQ such as pixel mapping and multi-element fixture control.
Its 24 universes of DMX output are expandable to 48 and connectivity features include two RDM-enabled DMX outputs, inbuilt Wi-Fi for programming and remote control, and four 10Scene ports for connecting up to forty 10Scene wall plates
Features:
- Ideal for installations and architectural settings
- 24 universes direct, expandable to 48
- Two RDM enabled DMX Outputs (Phoeonix Screw Terminal connectors)
- Inbuilt Wi-Fi for programming and remote control
- Four 10Scene ports for connection of up to forty 10Scene wall plate
- Features the same software as MagicQ Consoles
| Universes supported | 24, expandable to 48 via licence upgrade |
|---|---|
| DMX Outputs Pheonix Screw Terminal | 2 |
| External Monitor | 1920 x 1080 HDMI |
| Inbuilt Wi-Fi | Yes |
| Network Port | 1 |
| USB Ports | 2 |
| Power Input | 12v DC |
| Max Power Consumption (mains) | 60w |
