CHAMMQMINICONNECT | MAGICQ PC MINI CONNECT INCORPORATING 1*DMX512/RDM OUTPUT PORT, 1 * NETWORK INTERFACE, 10 PLAYBACKS
CHAMMQMINICONNECT
MAGICQ PC MINI CONNECT INCORPORATING 1*DMX512/RDM OUTPUT PORT, 1 * NETWORK INTERFACE, 10 PLAYBACKS
CHAMMQMINICONNECT
MAGICQ PC MINI CONNECT INCORPORATING 1*DMX512/RDM OUTPUT PORT, 1 * NETWORK INTERFACE, 10 PLAYBACKS
- UM : EA
- Estimated Weight: 29.0

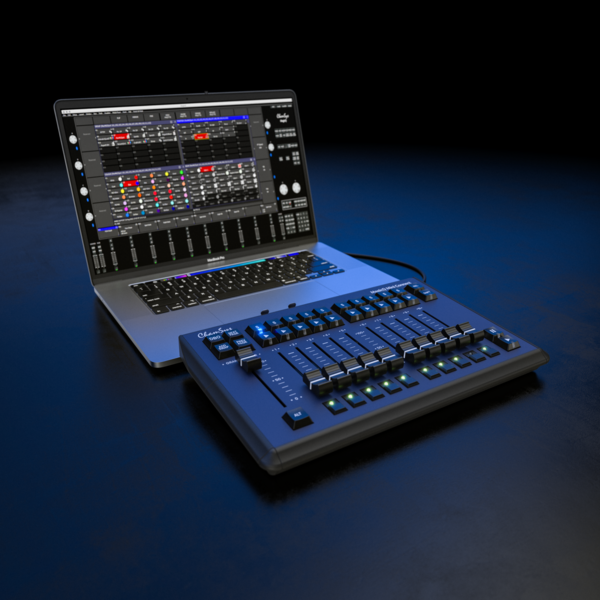

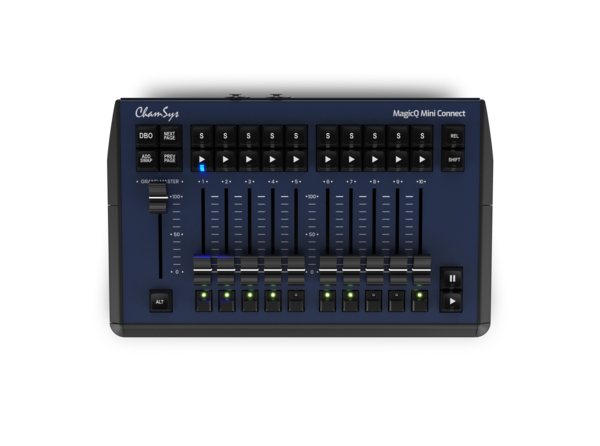

The ChamSys MagicQ Compact Mini Connect is a lightweight and portable USB-to-DMX interface designed to bring professional-level control to compact setups. It offers one DMX512 output and supports up to 64 universes via Art-Net and sACN over Ethernet. Featuring the full power of ChamSys MagicQ software, it provides access to advanced lighting control tools including palettes, effects, and pixel mapping. With a rugged build, compact size, and straightforward USB connectivity, the Compact Mini Connect is perfect for mobile lighting designers, rental houses, and small to mid-sized productions. Its combination of portability and professional features makes it a versatile solution for controlling lighting rigs in clubs, theaters, houses of worship, and live events.

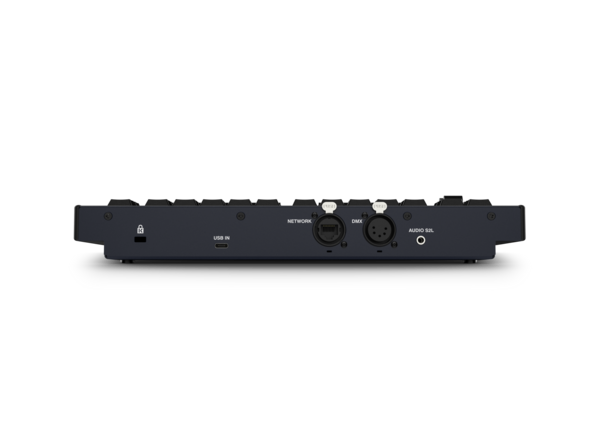

Hardware Specifications:
- Fader Playbacks: 10
- Direct DMX Outputs: 1
- Network Ports: 1
- Kensington Security Lock Fixing: 1
- USB Connector: Yes – USB-C
- USB 3 Powered: Yes (Must be connected to a USB 3.0 or higher port)
- Lightweight Durable Case Included
Software Specifications:
- Universes: 64
- Max Number of DMX Channels: 32768
- Max Number of Fixtures Supported: 32768
- Max Number of Cues: 5000
- Max Number of Cue Stacks: 2000
- Max Number of Groups: 5000
- Max Number of Palettes: 4096
- Number of Media Server Layers Supported: 50 (Each different content)
- Supported on Windows (8.1 or higher), macOS (10.13 or higher) and Linux
Included Accessories:
- USB A-C Cable: Yes
- Lightweight Durable Case: Yes
