CHAMQUICKQDIN | CHAMSYS QUICKQ DIN, UP TO 4 UNIVERSE CONTROL VIA ART-NET OR SACN, BUILT IN WI-FI
CHAMQUICKQDIN
CHAMSYS QUICKQ DIN, UP TO 4 UNIVERSE CONTROL VIA ART-NET OR SACN, BUILT IN WI-FI
CHAMQUICKQDIN
CHAMSYS QUICKQ DIN, UP TO 4 UNIVERSE CONTROL VIA ART-NET OR SACN, BUILT IN WI-FI
- UM : EA
- Estimated Weight: 25.0

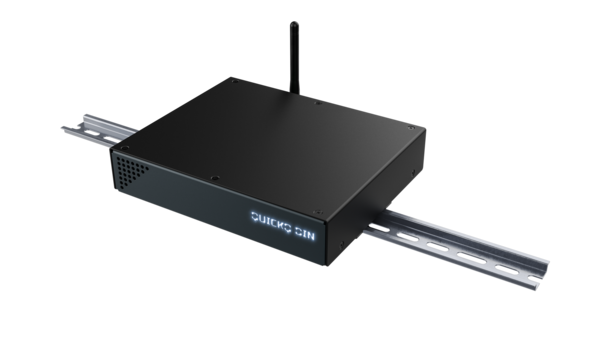

The intuitive simplicity of QuickQ software in a space-saving DIN rail mount solution.
QuickQ DIN supports all QuickQ features including Events, 10Scene and Executes, making it ideal for any installation where space is at a premium and control in a small package is required.
Control up to 4 universes from the device via Art-Net or sACN, the QuickQ DIN also features two RDM-enabled DMX outputs. Easily build installed lighting control systems with connectivity features that include inbuilt Wi-Fi for programming and remote control, and four 10Scene ports for connecting up to forty 10Scene wall plates.
Features:
- Ideal for installations and architectural settings
- Featuring four Universes of DMX output
- Two RDM enabled DMX outputs
- Inbuilt Wi-Fi for programming and remote control
- Four 10Scene ports for connection of up to forty 10Scene wall plate
- Features the same intuitive software as QuickQ Consoles
- Simple Hot-Takeover mode allowing an external console to take control

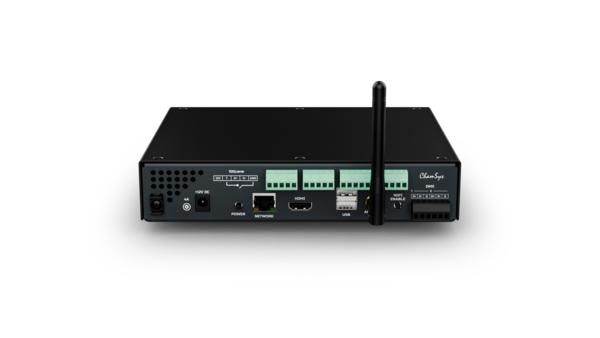

| Universes supported | 4 |
|---|---|
| Direct DMX Outputs Pheonix Screw Terminal | 2 |
| External Monitor | 1920 x 1080 HDMI |
| Inbuilt Wi-Fi | Yes |
| Network Port | 1 |
| USB Ports | 2 |
| Power Input | 12v DC |
