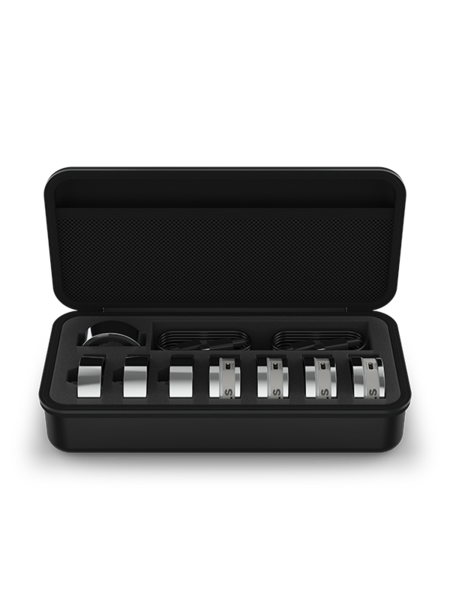

CODOTILS | 4-PIECE RGBW 3W LED LIGHT SET WITH CLEAR/DIFFUSED LENSES, USB-C LINKING, TRAVEL CASE, ILS, DMX, AND

  • MAP: $379.99 / EA
  • List Price: $440.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 4
  • Sign In or Submit RFQ for accurate lead times
4-PIECE RGBW 3W LED LIGHT SET WITH CLEAR/DIFFUSED LENSES, USB-C LINKING, TRAVEL CASE, ILS, DMX, AND
4-PIECE RGBW 3W LED LIGHT SET WITH CLEAR/DIFFUSED LENSES, USB-C LINKING, TRAVEL CASE, ILS, DMX, AND
4-PIECE RGBW 3W LED LIGHT SET WITH CLEAR/DIFFUSED LENSES, USB-C LINKING, TRAVEL CASE, ILS, DMX, AND
Click image to enlarge
4-PIECE RGBW 3W LED LIGHT SET WITH CLEAR/DIFFUSED LENSES, USB-C LINKING, TRAVEL CASE, ILS, DMX, AND
4-PIECE RGBW 3W LED LIGHT SET WITH CLEAR/DIFFUSED LENSES, USB-C LINKING, TRAVEL CASE, ILS, DMX, AND
4-PIECE RGBW 3W LED LIGHT SET WITH CLEAR/DIFFUSED LENSES, USB-C LINKING, TRAVEL CASE, ILS, DMX, AND

CODOTILS
4-PIECE RGBW 3W LED LIGHT SET WITH CLEAR/DIFFUSED LENSES, USB-C LINKING, TRAVEL CASE, ILS, DMX, AND

  • UM : EA
  • Estimated Weight: 10.0

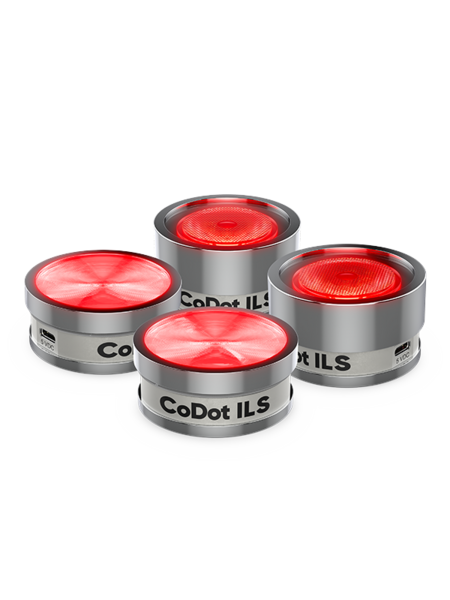

Party lighting fits in the palm of your hand with CoDot ILS. This puck-sized LED illuminator is the perfect solution for small spaces where conventional fixtures can’t fit. Each CoDot ILS has 1 quad-color (RGBW) LED to suit a range of applications. With D-Fi, ILS, and RF compatibility, this fixture works with the lighting control that best suits your needs. Make any area of your venue shine with CoDot ILS.

Features:

  • Coin-sized LED illuminator designed for small applications where conventional fixtures won’t fit
  • Includes two lens options to meet different application criteria
  • Magnetic base easily mounts to metal surfaces
  • Threaded insert is compatible with camera tripods and accessories
  • ILS compatibility for use in the ILS ecosystem
  • Built-in DFI transceiver communicates DMX or ILS signals wirelessly
  • Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

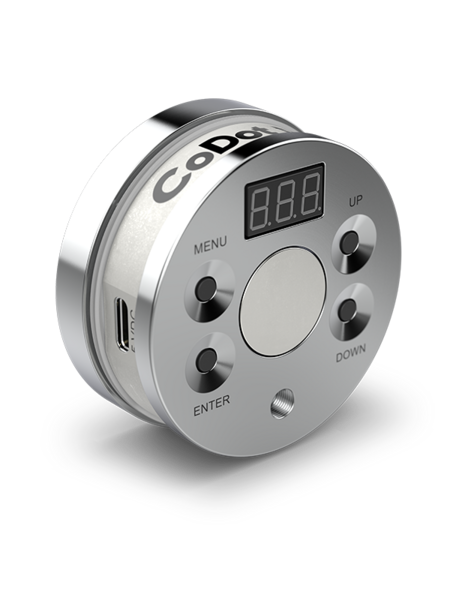

  • Easy navigation and access all functions directly from the LED display
  • Power linking multiple units from the USB type-C in and out
DMX Channels 4 or 6
Max Unobstructed Distance 600 ft (183 m)
Light Source 1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
Strobe Rate 0 to 20 Hz
Operating Frequency 2.4 GHz
Power Linking 4 units @ 120 V
4 units @ 230 V
Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
Weight 0.2 lb (.1 kg)
Size 2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm)
Approvals CE, ROHS, UKCA, FCC
Beam Angle (installed lens) 19°
Beam Angle (included lens) 14°
Illuminance (installed lens) 256 lux @ 2 m
Illuminance (included Lens) 442 lux @ 2 m
Operating Frequency 2.4 GHz
Power and Current 7 W, 0.1 A @ 120 V, 60 Hz
Power and Current 7 W, 0.1 A @ 230 V, 50 Hz
Optional Controllers ILS Command, RFC, RFC-XL
Threaded Insert M6 thread
