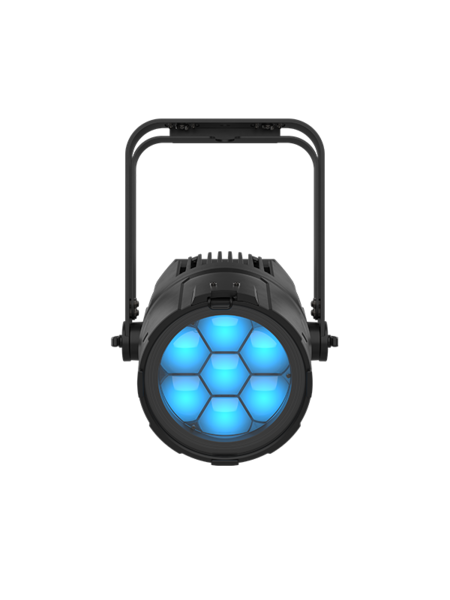

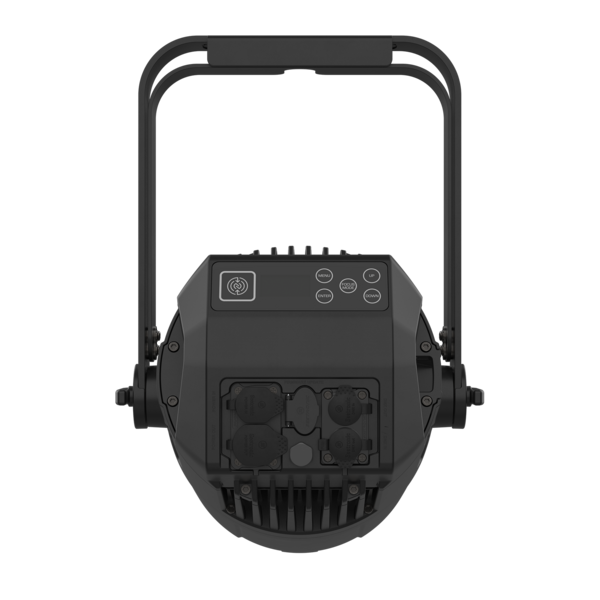

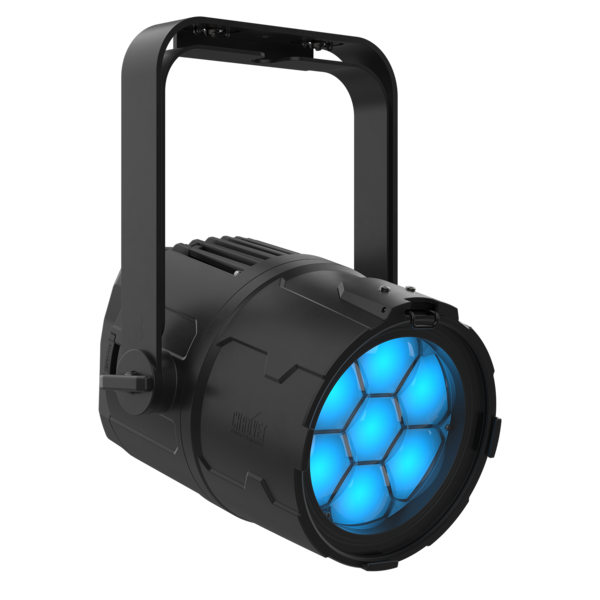

COLORADO3QZL | COLORADO 3 QUAD ZOOM
COLORADO3QZL
COLORADO 3 QUAD ZOOM
Click image to enlarge
COLORADO3QZL
COLORADO 3 QUAD ZOOM
- UM : EA
- Estimated Weight: 20.0
All the rugged IP65 reliability of CHAUVET PROFESSIONAL's production-grade COLORado family in a fixture featuring the power of lime to achieve better whites and more accurate color rendition. A new RGBL LED source paired with optics optimized for its upgraded zoom system delivers higher output than ever before, from a road-tested design with new touring-friendly features that include backlit buttons for easier work in the dark.
Features:
- Utilizes a powerful RGBL LED engine for enhanced whites and a CCT range of 2800K to 8000K.
- Provides a wide 3.9° to 52.6° motorized zoom for flexible beam shaping and coverage.
- Features IP65-rated power and data connections for dependable operation in any environment.
- Offers versatile control via DMX and RDM with nine selectable channel personalities.
- Simplifies setup with an OLED display, backlit buttons, and a dedicated focus mode.
- Features selectable dimming curves to achieve exceptionally smooth fades and visual effects.
| Light Source | 7 LEDs (quad-color RGBL), 8.4 to 13 W, (2.7 A), 50,000 hours life. |
|---|---|
| Color Temperature (range) | 2800 to 8000 K |
| Color Temperature (at full) | 5882 K |
| CRI (3200K) | 83 |
| Beam Angle | 3.9° to 38.5° |
| Field Angle | 6° to 52.6° |
| Cutoff Angle | 7.3° to 58.9° |
| Zoom Range | 3.9° to 52.6° |
| Lumens (3.2°) | 3350 |
| Lumens (39.9°) | 5974 |
| Illuminance (3.9°) | 27,567 lux @ 5 m |
| Illuminance (38.5°) | 657 lux @ 5 m |
| Selectable PWM | 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25,000Hz |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Connection | USB |
| Certifications | CE, MET, FCC |
| IP Rating | IP65, outdoor/wet, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | -4 °F to 122 °F (-20 °C to 50 °C) |
×
×
