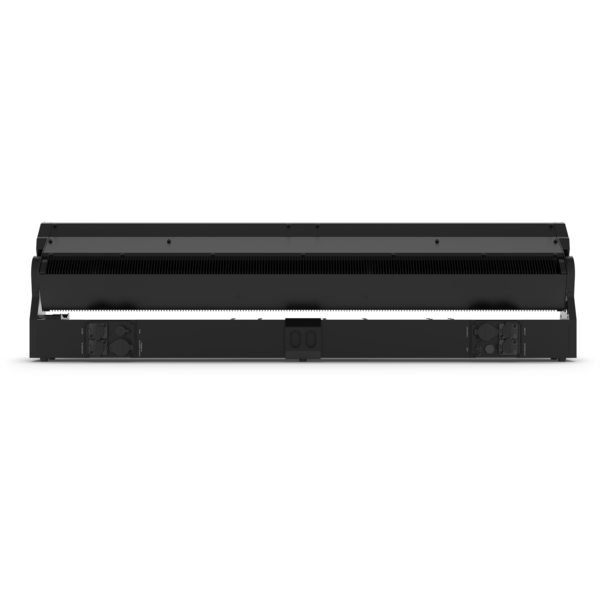

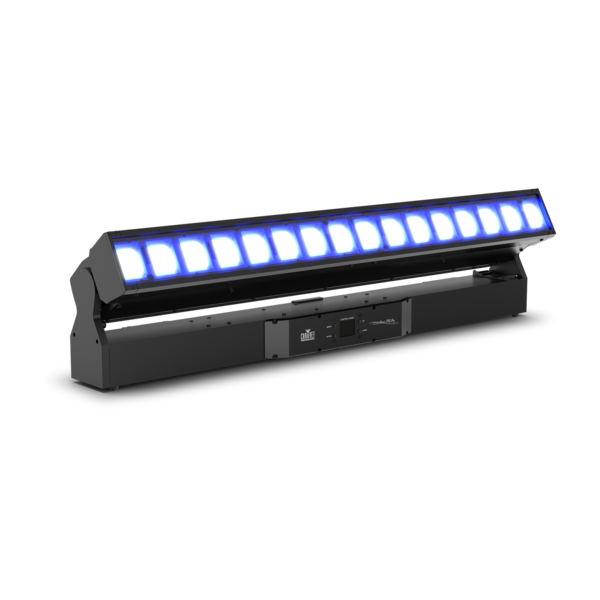

COLORADOPXLBAR16 | IP65-RATED 16 LED MOTORIZED OUTDOOR-READY TILTING BATTEN W/ZOOM FOR TIGHT & WIDE PIXEL-MAPPABLE LOOK
COLORADOPXLBAR16
IP65-RATED 16 LED MOTORIZED OUTDOOR-READY TILTING BATTEN W/ZOOM FOR TIGHT & WIDE PIXEL-MAPPABLE LOOK
COLORADOPXLBAR16
IP65-RATED 16 LED MOTORIZED OUTDOOR-READY TILTING BATTEN W/ZOOM FOR TIGHT & WIDE PIXEL-MAPPABLE LOOK
- UM : EA
- Estimated Weight: 54.0
COLORado PXL Bar 16 is a motorized, outdoor-ready tilting batten with capabilities to zoom for tight and wide pixel-mappable looks. This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background color control for more design options than ever before. Slotted Omega brackets make it quick and easy to hang the fixture on truss. The COLORado PXL Bar 16 can also be positioned on the ground, which allows for a variety of different light angles. With two zones of control, the power is in your hands and the possibilities are endless!
Features:
- Features sixteen 45W RGBW LEDs for intense, high-output pixel effects and washes.
- Offers a wide motorized zoom range of 5.8° to 47.9° for flexible beam shaping.
- Provides swift and quiet 200-degree motorized tilt for dynamic and precise positioning.
- Allows for full pixel mapping with individual control of all sixteen LEDs.
- Built with a rugged IP65-rated housing for reliable performance in any weather condition.
- Designed for seamless edge-to-edge mounting to maintain a consistent pixel pitch.
| Light Source | 16 LEDs (quad-color RGBW) 45 W, (3.0 A), 8875 K, 50,000 hours life expectancy. |
|---|---|
| Color Temperature (calibrated white) | 6122 K |
| CRI | 61.6 |
| Beam Angle | 5.8° to 30.4° |
| Beam Angle single cell | 4° to 29.9 |
| Field Angle | 8.9° to 42.2° |
| Field Angle single cell | 5.4° to 42.3° |
| Cutoff Angle | 10° to 47.9° |
| Cutoff Angle single cell | 6.1° to 45.5° |
| Zoom Range | 5.8° to 47.9° |
| Zoom Range single cell | 4° to 45.5° |
| Lumens (43.3°) | 8,959 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz |
| Power Connection | Bare end to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP rated, Seetronic IP rated RJ45 Connectors in/out |
| Cable Length (power) | 5 ft (1.5 m) |
| Certifications | CE, MET, FCC |
| IP Rating | IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
