COLORADOPXLBAR8 | IP65-RATED 8 LED MOTORIZED OUTDOOR-READY TILTING BATTEN W/ZOOM FOR TIGHT & WIDE PIXEL-MAPPABLE LOOKS
COLORADOPXLBAR8
IP65-RATED 8 LED MOTORIZED OUTDOOR-READY TILTING BATTEN W/ZOOM FOR TIGHT & WIDE PIXEL-MAPPABLE LOOKS
COLORADOPXLBAR8
IP65-RATED 8 LED MOTORIZED OUTDOOR-READY TILTING BATTEN W/ZOOM FOR TIGHT & WIDE PIXEL-MAPPABLE LOOKS
- UM : EA
- Estimated Weight: 29.0

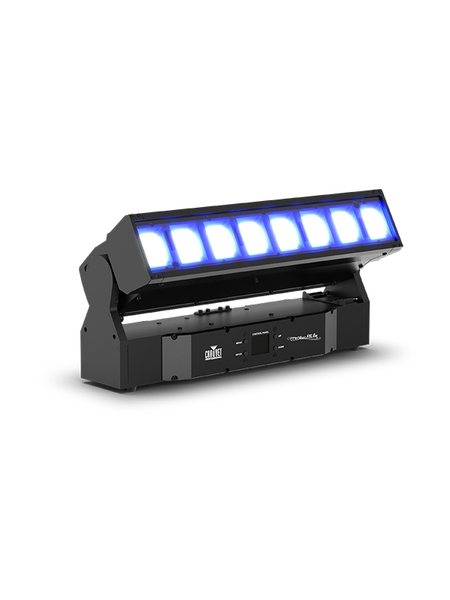

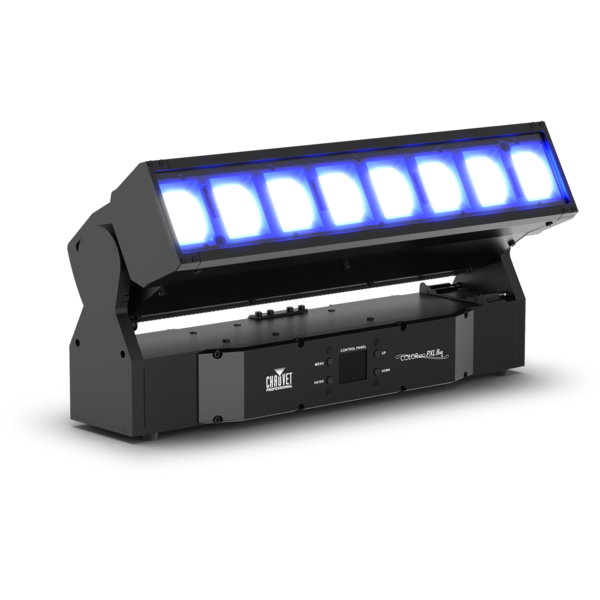

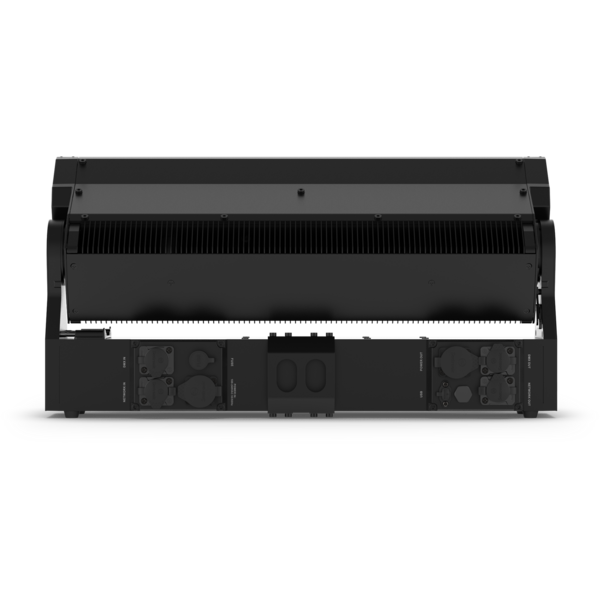

COLORado PXL Bar 8 is a motorized, outdoor-ready tilting batten with capabilities to zoom for tight and wide pixel-mappable looks. This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background color control for more design options than ever before. Slotted Omega brackets make it quick and easy to hang the fixture on truss. The COLORado PXL Bar 8 can also be positioned on the ground, which allows for a variety of different light angles. The power is in your hands and the possibilities are endless!
Features:
- Features eight powerful 45W RGBW LEDs for intense, vibrant color mixing and effects.
- Offers a versatile motorized zoom range from a tight 3.5° beam to a wide 42.7° wash.
- Provides fast and quiet 200° motorized tilt for dynamic sweeping and positioning effects.
- Allows seamless edge-to-edge mounting to create uniform, gapless linear arrays.
- Built with an IP65-rated housing and connections for reliable performance in any weather.
- Supports DMX, Art-Net, sACN, and Kling-Net protocols for flexible system integration.
| Light Source | 8 LEDs (quad-color RGBW) 45 W, (3.0 A),50,000 hours life expectancy. |
|---|---|
| Color Temperature | 6121 K (calibrated white) |
| CRI | 64 |
| Beam Angle | 3.5° to 30.8° |
| Beam Angle single cell | 4° to 29.9° |
| Field Angle | 5.2° to 42.7° |
| Field Angle single cell | 5.4° to 42.3° |
| Cutoff Angle | 8.5° to 47.3° |
| Cutoff Angle single cell | 6.1° to 45.5° |
| Zoom Range | 3.6° to 47.3° |
| Zoom Range single cell | 4° to 45.5° |
| Lumens | 3,503 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz |
| Power Connection | Bare end to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP rated, Seetronic IP rated RJ45 connectors in/out |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | Art-Net, Kling-Net, DMX, sACN, RDM |
| DMX Channels | (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7) |
| Art-Net Channels | (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7) |
| Modes/Personalities | 10 personalities (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7) |
| Certifications | CE, MET, FCC |
| IP Rating | IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
