COLORADOPXLCURVE12 | FULLY PIXEL-MAPPABLE MOTORIZED IP65-RATED RGBW LED BATTEN

  • MAP: $7,013.00 / EA
  • List Price: $8,050.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
FULLY PIXEL-MAPPABLE MOTORIZED IP65-RATED RGBW LED BATTEN
FULLY PIXEL-MAPPABLE MOTORIZED IP65-RATED RGBW LED BATTEN
Click image to enlarge
FULLY PIXEL-MAPPABLE MOTORIZED IP65-RATED RGBW LED BATTEN
FULLY PIXEL-MAPPABLE MOTORIZED IP65-RATED RGBW LED BATTEN

COLORADOPXLCURVE12
FULLY PIXEL-MAPPABLE MOTORIZED IP65-RATED RGBW LED BATTEN

  • UM : EA
  • Estimated Weight: 73.0

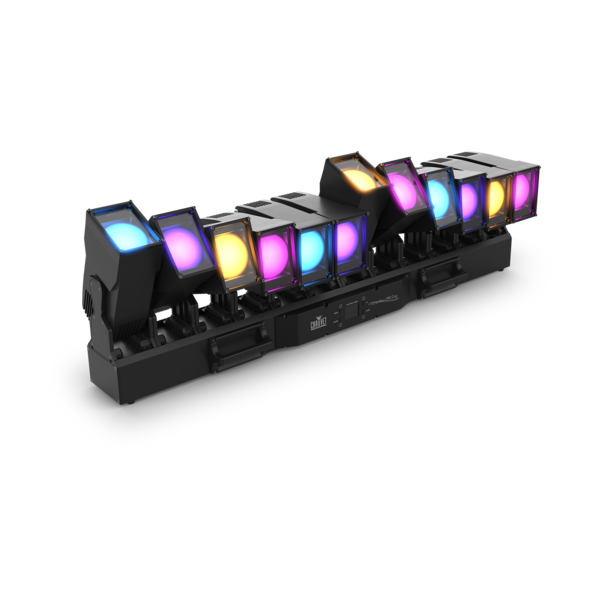

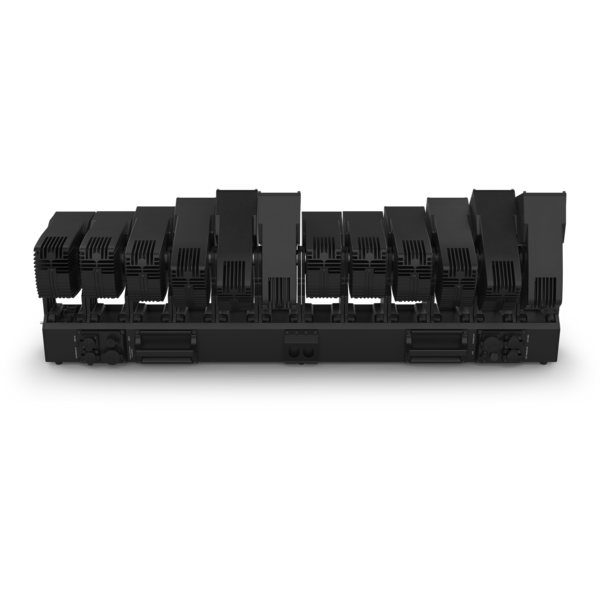

COLORado PXL Curve 12 is a fully pixel-mappable motorized IP65-rated RGBW LED batten with individual control of zoom, tilt and color across twelve independent heads. Basic and advanced operating modes and an extensive library of pre-built effects that includes virtual gobos, movement macros, and foreground/background color control make creating complex and volumetric looks easy. Seamless edge-to-edge mounting maintains pixel pitch between fixtures helping to make runway effects consistent. COLORado PXL Curve 12 speaks DMX, sACN, Art-Net, Kling-Net and RDM.

Features:

  • Houses twelve powerful 45 W RGBW LEDs for intense, vibrant color mixing and high output.
  • Offers individual head control with a quiet and quick 200-degree motorized tilt range.
  • Delivers a versatile 5.7° to 36.3° zoom range on each head for tight beams or wide washes.
  • Features a built-in effects engine with virtual gobos and movement macros for complex animations.
  • Built with an IP65-rated housing and weatherproof connections for reliable outdoor and touring use.
  • Supports multiple control protocols including Art-Net, sACN, DMX, Kling-Net, and RDM.

Light Source12LEDs (RGBW) 45 W, (2.96 A) 50,000 hours life expectancy
Color Temperature (range)2700 to 8000 K
Zoom Range5.7° to 36.3°
Lumens5,807 lm
Selectable PWM600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Power ConnectionEdison (Local) plug to Seetronic Powercon IP65
Power InputSeetronic Powercon IP65
Power OutputSeetronic Powercon IP65
Data Connectors5-pin IP65 XLR, Seetronic etherCON IP65
Cable Length (power)5 ft (1.5 m)
Control ProtocolArt-Net, sACN, DMX, RDM, Klingnet
DMX Channels20ch, 53ch, 101ch, 155ch, 179ch
Art-Net Channels20ch, 53ch, 101ch, 155ch, 179ch
sACN Channels20ch, 53ch, 101ch, 155ch, 179ch
Modes/Personalities5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)
CertificationsCE, MET, UKCA, FCC
IP RatingIP65, temporary outdoor/wet use
Temperature (Ambient)14 °F to 113 °F (-10 °C to 45 °C)
