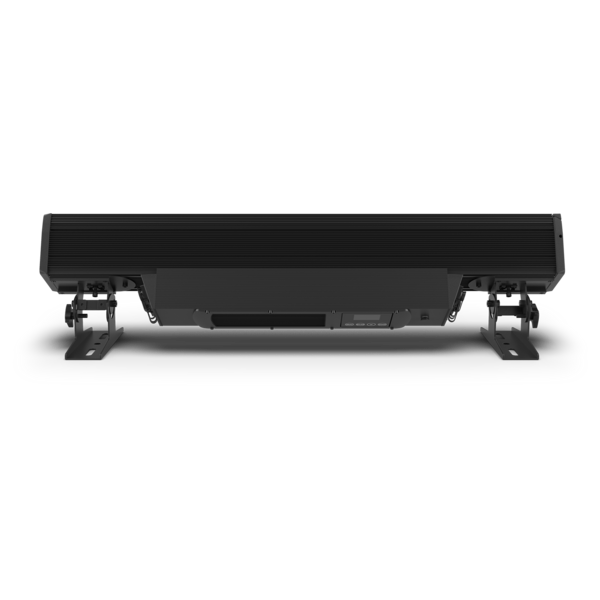

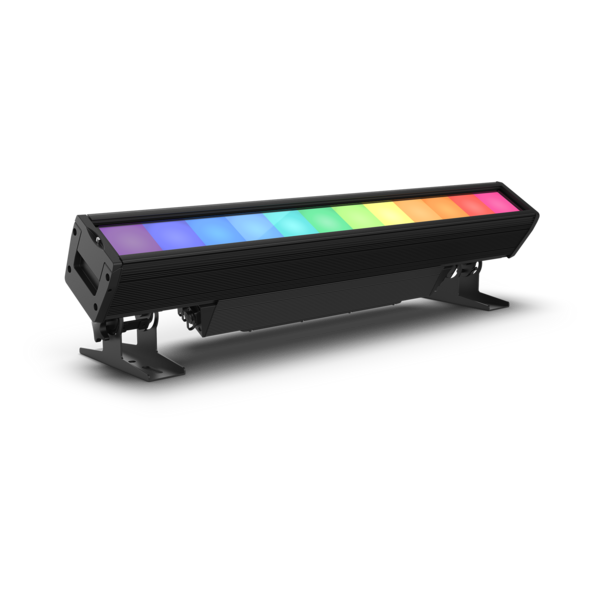

COLORADOSOLOBATTEN | COLORADO SOLO BATTEN, INCLUDES: INCLUDES: IP POWERKON POWER CORD, FLOOR BRACKET, GLARE SHIELD
COLORADOSOLOBATTEN
COLORADO SOLO BATTEN, INCLUDES: INCLUDES: IP POWERKON POWER CORD, FLOOR BRACKET, GLARE SHIELD
COLORADOSOLOBATTEN
COLORADO SOLO BATTEN, INCLUDES: INCLUDES: IP POWERKON POWER CORD, FLOOR BRACKET, GLARE SHIELD
- UM : EA
- Estimated Weight: 46.0
COLORado Solo Batten is a powerful one-of-a-kind batten that projects a single homogenized wash with smooth color-mixing, giving it the appearance of a bright single bar of light without round “eyes” or pixels. It complements the COLORado Solo pars perfectly. This very versatile fixture is also engineered with 12 square sections that can be controlled individually, appear seamlessly together without separation and create an endless variety of color control and pixel mapping effects. The unit is IP65 rated and equipped with DMX and RDM protocols.
Features:
- Houses 144 RGBAW LEDs to deliver rich, saturated colors and high-quality white light.
- Offers a wide color temperature range, adjustable from a warm 1800 K to a cool 8000 K.
- Engineered with unique optics to project a single, homogenized wash with no visible pixels.
- Provides individual control over twelve seamless sections for creative pixel-mapping effects.
- Built with an IP65 housing and IP-rated connections for reliable performance in all environments.
- Supports DMX, RDM, Art-Net, and sACN protocols for flexible and comprehensive control options.
| Light Source | 144 LEDs (24 red, 24 green, 24 blue, 24 amber, 48 white) 3 W, (612 mA) 50,000 hours life expectancy |
|---|---|
| Color Temperature (range) | 1800 to 8000 K |
| Installed Optics | 18° |
| Beam Angle (Horizontal) | 20° |
| Beam Angle (Vertical) | 16° |
| Beam Angle (Horizontal w/filter) | 37° |
| Beam Angle (Vertical w/filter) | 15° |
| Field Angle (Horizontal) | 34° |
| Field Angle (Vertical) | 29° |
| Field Angle (Horizontal w/filter) | 63° |
| Field Angle (Vertical w/filter) | 30° |
| Lumens | 6,968 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP65 XLR, Seetronic etherCON IP65 |
| Cable Length (power) | 5 ft (1.5 m) |
| Certifications | CE, MET, FCC |
| IP Rating | IP65, temporary outdoor/wet use |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
