COLORADOSOLOBATTEN4 | COLORADO SOLO BATTEN 4, INCLUDES: INCLUDES: IP POWERKON POWER CORD, FLOOR BRACKET, GLARE SHIELD
COLORADOSOLOBATTEN4
COLORADO SOLO BATTEN 4, INCLUDES: INCLUDES: IP POWERKON POWER CORD, FLOOR BRACKET, GLARE SHIELD
COLORADOSOLOBATTEN4
COLORADO SOLO BATTEN 4, INCLUDES: INCLUDES: IP POWERKON POWER CORD, FLOOR BRACKET, GLARE SHIELD
- UM : EA
- Estimated Weight: 19.0

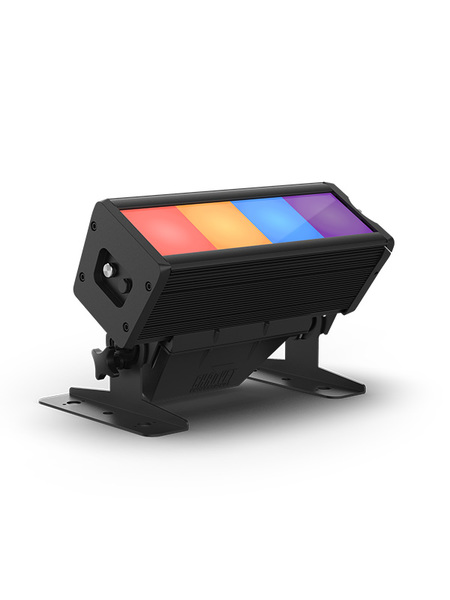

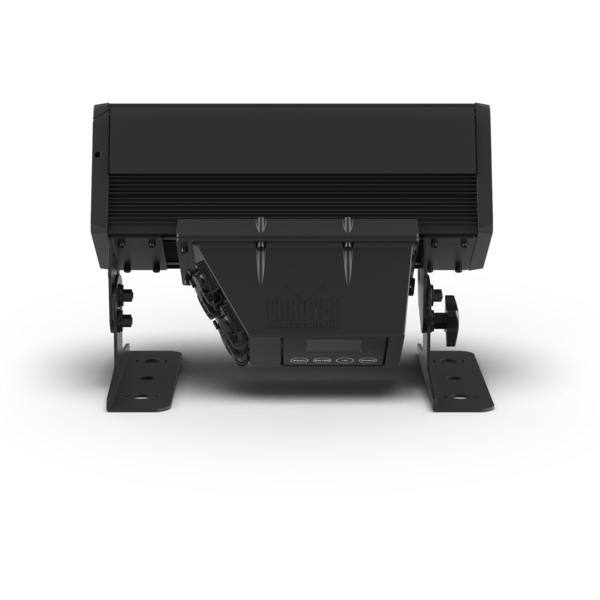

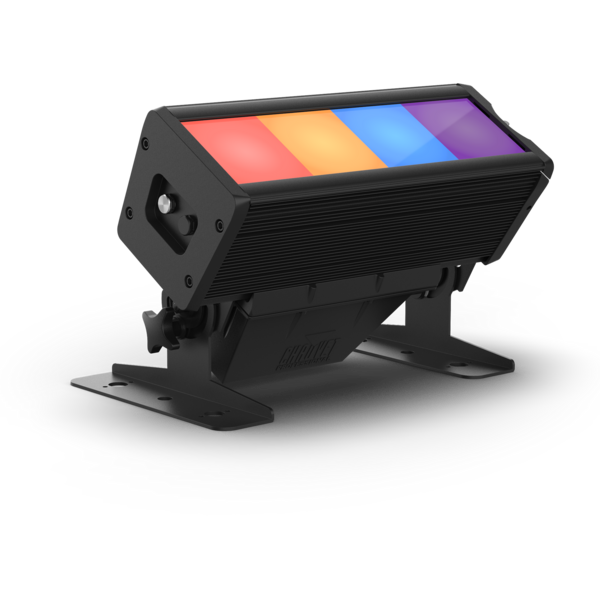

COLORado Solo Batten 4 is a unique RGBAW 4-cell LED batten with seamless end-to-end color mixing. This compact, multi-purpose fixture has four completely homogenized, individually-controlled square sections that project smooth color-mixing without separation or dimmed lens corners. This versatile batten is IP65-rated and can be used as a wash or for pixel-mappable eye-candy effects. It also compliments CHAUVET PROFESSIONAL's COLORado Solo Batten perfectly. This small but robust fixture was built for touring, festivals, installations, and theatrical productions. This unit includes IP-rated power, DMX, and Ethernet connections, as well as a large, password-protected display.
Features:
- Utilizes 48 RGBAW LEDs across four cells for completely homogenized, shadow-free color mixing.
- Features an IP65-rated housing with IP power, DMX, and Ethernet connections for outdoor use.
- Delivers a wide color temperature range with selectable presets from 1800K to 8000K.
- Supports DMX, RDM, Art-Net, and sACN protocols for versatile system integration.
- Offers five selectable dimming curves for smooth fades and enhanced programming versatility.
- Provides a native 18° beam angle, expandable to 35° with an optional filter.
| Light Source | 48 LEDs (8 red, 8 green, 8 blue, 8 amber, 16 white) 3 W, (612 mA) 50,000 hours life expectancy |
|---|---|
| Color Temperature (range) | 1800 to 8000 K |
| CRI (3200 K) | 77.2 |
| Installed Optics | 18° |
| Beam Angle (Horizontal) | 18° |
| Field Angle (Horizontal) | 34° |
| Lumens | 3,730 |
| Illuminance (total) | 1,270 lux @ 5 m |
| Illuminance w/ Filter (total) | 432 lux @ 5 m |
| Selectable PWM | 600, 1,200, 2,000, 4,000, 6,000, 25,000 |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP65 XLR, Seetronic etherCON IP65 |
| Cable Length (power) | 5 ft (1.5 m) |
| Certifications | CE, MET, FCC |
| IP Rating | IP65, temporary outdoor/wet use |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
