COLORSTRIKEMV2 | IP65 rated motorized strobe/wash w/ two white light tube elements,strobe light

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
IP65 rated motorized strobe/wash w/ two white light tube elements,strobe light
IP65 rated motorized strobe/wash w/ two white light tube elements,strobe light
Click image to enlarge
IP65 rated motorized strobe/wash w/ two white light tube elements,strobe light
IP65 rated motorized strobe/wash w/ two white light tube elements,strobe light

COLORSTRIKEMV2
IP65 rated motorized strobe/wash w/ two white light tube elements,strobe light

  • UM : EA

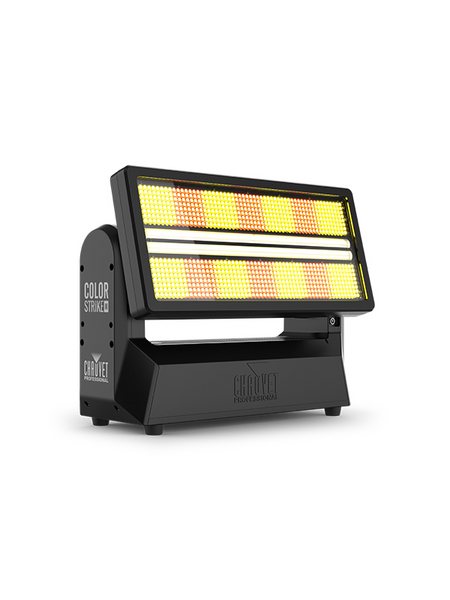

Color STRIKE M is an IP65 rated motorized strobe/wash with two ultra-bright, white light tube elements surrounded by an electrifying, color-mixing, and pixel-mappable face. This versatile strobe light can double as a wash fixture with 180° tilt range to throw bright saturated color wherever you need. The IP65 casing protects the fixture from any environmental factors or weather and has two omega-bracket attachments so you can mount the fixture horizontally or vertically without any hassle. Multiple programming personalities give you a varying amount of control from simple set ups with a multitude of built-in effects, or wider control options to take advantage of the pixel-mappable zones: 14 in the RGB face and 28 in the two tube elements. Built-in alignment pins insure perfectly straight linear arrays to create massive arrangements. DMX, Art-net, and sACN control. All LEDs feature 16-bit dimming for smooth fades and Pulse Width Modulation for on-camera use.

Features:

  • High-power, 180° tilting hybrid strobe/wash with IP65 rating for all-weather use.
  • 14 controllable sections of RGB LEDs and 28 sections of control of the white strobe LEDs.
  • Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options in vertical and horizontal orientations
  • Multitude of built-in effect macros with control parameters
  • DMX, ArtNet and sACN control capability
  • 16-bit dimming control for smooth, perfect fades
  • Easy to use OLED display
  • Rugged design for years of rough use in the most extreme conditions.
  • Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility
  • USB port for fixture software updates
  • Built-in alignment pins to insure perfectly straight linear arrays
Light Source 896 LEDs (tri-color) SMD 5050, 0.784 W, (252 mA), 50,000 hours life expectancy
Light Source 432 LEDs, (CW) 1.56 W, (696 mA), 5861K, 50,000 hours life expectancy
Color Temperature (at full) 7757 K
CRI 90.3
Beam Angle (Combine) 98° x 57°
Beam Angle (Plate) 123°
Beam Angle (Beam) 95° x 50°
Field Angle (Combine) 146° x 122°
Field Angle (Plate) 160°
Field Angle (Beam) 138° x 100°
Lumens (Combined) 71,620
Lumens (Plate) 18,600
Lumens (Beam) 54,381
Illuminance (Combined) 1591 lux @ 5 m
Illuminance (Plate) 231 lux @ 5 m
Illuminance (Beam) 1432 lux @ 5 m
Selectable PWM 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Tilt 180°
Tilt Ranges 0° to 180°
Dimmer Electronic
Shutter/Strobe Electronic
Strobe Rate 0 to 30 Hz
Standalone Color Mixing Yes
Dim Modes 4
Built-in Automated Programs Yes
Dimensions 16.02 x 6.90 x 12.30 in (407 x 175.4 x 312.5 mm)
Weight 26.6 lb (12.1 kg)
Exterior Color Black
Housing Material Magnesium alloy
Power Connection Edison (Local) plug to Seetronic Powerkon IP65
Power Input Seetronic Powerkon IP65
Data Connectors 5-pin IP65 XLR, Seetronic etherCON IP65
Cable Length (power) 5 ft (1.5 m)
Control Protocol Art-Net, DMX, RDM, sACN
DMX Channels 8, 11, 13, 24, 30, 47, 74 or 97
Art-Net Channels 8, 11, 13, 24, 30, 47, 74 or 97
Modes/Personalities 8 personalities (8, 11, 13, 24, 30, 47, 74, 97)
Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current 720 W, 7.14 A @ 100 V, 60 Hz
Power and Current 740 W, 6.36 A @ 120 V, 60 Hz
Power and Current 716 W, 2.35 A @ 208 V, 60 Hz
Power and Current 696 W, 3.27 A @ 230 V, 50 Hz
Power and Current 709 W, 3.02 A @ 240 V, 50 Hz
IP Rating IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Temperature (Ambient) 14 °F to 113 °F (-10 °C to 45 °C)
Professional Clamps CTC-50HC, CTC-50HCN
Safety Cable SC-07
