COLORSTRIP | LED STRIP FIXTURE-FULL SIZE, LINEAR WASH LIGHT FOR UPLIGHTING APPLICATIONS OR EYE-CANDY EFFECTS

COLORSTRIP
LED STRIP FIXTURE-FULL SIZE, LINEAR WASH LIGHT FOR UPLIGHTING APPLICATIONS OR EYE-CANDY EFFECTS

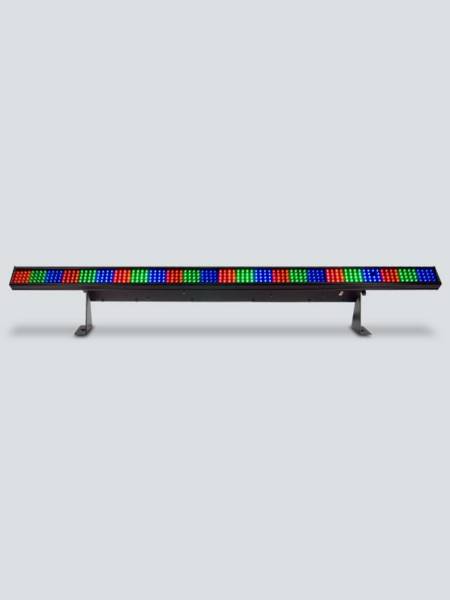

COLORstrip is an LED-fitted strip fixture. The unit can be controlled via four DMX channels, multiple modes accessible via the control panel, or an optional LED-FS1 controller. The COLORstrip features built-in programs with automatic and sound-active triggers, and allows access to popular preset RGB mixed colors: yellow, purple, cyan and white. The fixture is equipped with pre-programmed flash, color chase, sequential color chase, color mixing and color fade patterns. Jacking the COLORstrip into a DMX controller gives the programmer access to all pre-programmed features as well as to speed adjustments for fade and flash. At 38 inches long, 2.5 inches wide (96.5cm x 6.4cm),and weighing less than 5 pounds (2.05kgs), it is ideal for creating “runway” effects without cluttering up the catwalk.

FEATURES

• Full size, linear wash light designed for uplighting applications or for great eye-candy effects
• Increase effects by power linking multiple units together to make runway chases
• Create large, coordinated light shows with other COLORstrip™ and COLORstrip™ Mini fixtures in Master/Slave mode
• Convenient, wireless non-DMX control using the optional IRC-6 remote
• Save time running cables and extension cords by power linking multiple units
• Easily transports in the CHS-60 VIP Gear Bag

WHAT’S INCLUDED

• Power cord
• Hanging bracket with mounting hardware
• Warranty card
• Quick Reference Guide




SPECS

• DMX Channels:4
• DMX Connectors:3-pin XLR
• Light Source:384 LEDs (128 red, 128 green, 128 blue) 0.25 W (20 mA), 100,000 hours life expectancy
• Beam Angle:16°
• Field Angle:30°
• Illuminance:2,285 lux @ 2 m
• Power Linking:15 units @ 120 V; 28 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:72 W, 0.6 A @ 120 V, 60 Hz
  73 W, 0.3 A @ 230 V, 50 Hz
• Weight:4.5 lb (2 kg)
• Dimensions:38 x 2.5 x 6 in (965 x 64 x 155 mm)
• Approvals:CE, MET
• Optional Controllers: LED-FS1, IRC-6
