CONTROL 126WT | PREMIUM IN-WALL LOUDSPEAKER WITH TRANSFORMER 70.7V OR 100V DISTRIBUTED LINE

  • MAP: $250.00 / EA
  • List Price: $250.00 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 2
  • Case Quantity: 2
  • Sign In or Submit RFQ for accurate lead times
PREMIUM IN-WALL LOUDSPEAKER WITH TRANSFORMER 70.7V OR 100V DISTRIBUTED LINE
PREMIUM IN-WALL LOUDSPEAKER WITH TRANSFORMER 70.7V OR 100V DISTRIBUTED LINE
PREMIUM IN-WALL LOUDSPEAKER WITH TRANSFORMER 70.7V OR 100V DISTRIBUTED LINE
Click image to enlarge
PREMIUM IN-WALL LOUDSPEAKER WITH TRANSFORMER 70.7V OR 100V DISTRIBUTED LINE
PREMIUM IN-WALL LOUDSPEAKER WITH TRANSFORMER 70.7V OR 100V DISTRIBUTED LINE
PREMIUM IN-WALL LOUDSPEAKER WITH TRANSFORMER 70.7V OR 100V DISTRIBUTED LINE

CONTROL 126WT
PREMIUM IN-WALL LOUDSPEAKER WITH TRANSFORMER 70.7V OR 100V DISTRIBUTED LINE

  • UM : EA
  • Estimated Weight: 7.0

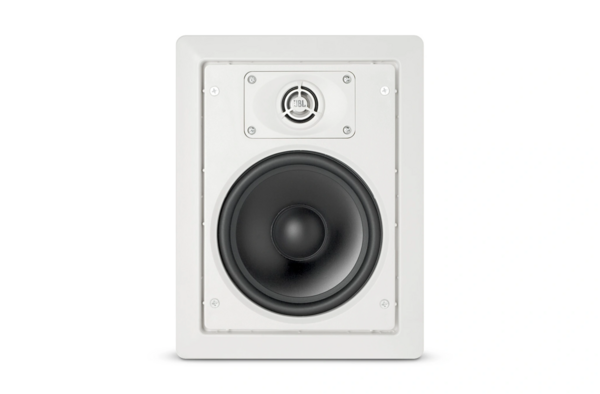

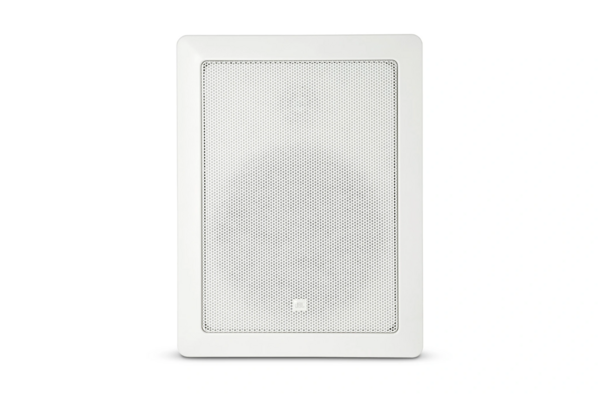

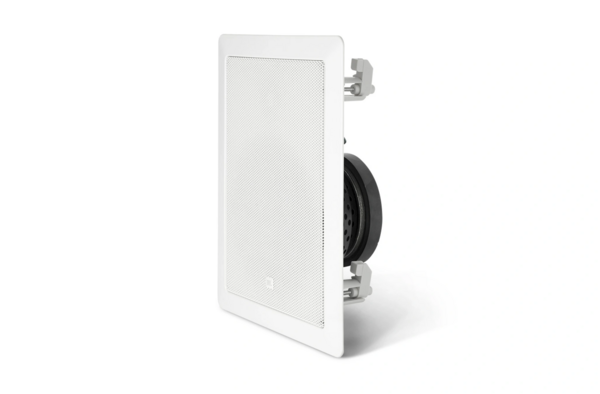

CONTROL 126WT is an in-wall loudspeaker from the JBL Professional Control Contractor series. It is designed for installation in various environments, including boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, and surround sound setups. The speaker is intended for applications requiring clear audio performance with minimal visual presence.

Features:

  • 165 mm polymer-coated aluminum-cone woofer with butyl rubber surround
  • 25 mm pure-titanium dome swivel aimable tweeter
  • High-slope crossover for natural midrange sound
  • Frequency response: 38 Hz – 20 kHz
  • Power handling: 50W continuous, 100W program, 200W peak
Frequency Range 38 Hz - 20 kHz (-10 dB)
Power Rating 200 W Peak, 100 W Continuous Program Power, 50 W Continuous Pink Noise
Transformer Taps 70 V: 30 W, 15 W, 7.5 W, 3.7 W
Sensitivity 88 dB SPL
Coverage Angle 180° Horizontal x 160° Vertical
Impedance 8ohms
Drivers LF: 165 mm polymer-coated aluminum cone; HF: 25 mm pure-titanium dome with cloth suspension on low-diffraction swivel mount with -10 degree aimability
Input Connectors Screw-down Euroblock-type, max wire size 14 AWG (1.5 mm²)
Crossover Network 3rd order (18 dB/oct) Low Pass to woofer and 3rd order (18 dB/oct) High Pass to tweeter
Optimum Air Cavity Behind Speaker 20 to 40 liters
Included Accessories Cutout template and paint shield
