CONTROL 128WT | CONTROL 128W WITH TRANSFORMER FOR USE ON A 70.7V OR 100V DISTRIBUTED LINE. SELECTABLE TAPS AT 50W,

  • MAP: $300.00 / EA
  • List Price: $300.00 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 2
  • Case Quantity: 2
  • Sign In or Submit RFQ for accurate lead times
CONTROL 128W WITH TRANSFORMER FOR USE ON A 70.7V OR 100V DISTRIBUTED LINE. SELECTABLE TAPS AT 50W,
CONTROL 128W WITH TRANSFORMER FOR USE ON A 70.7V OR 100V DISTRIBUTED LINE. SELECTABLE TAPS AT 50W,
CONTROL 128W WITH TRANSFORMER FOR USE ON A 70.7V OR 100V DISTRIBUTED LINE. SELECTABLE TAPS AT 50W,
Click image to enlarge
CONTROL 128W WITH TRANSFORMER FOR USE ON A 70.7V OR 100V DISTRIBUTED LINE. SELECTABLE TAPS AT 50W,
CONTROL 128W WITH TRANSFORMER FOR USE ON A 70.7V OR 100V DISTRIBUTED LINE. SELECTABLE TAPS AT 50W,
CONTROL 128W WITH TRANSFORMER FOR USE ON A 70.7V OR 100V DISTRIBUTED LINE. SELECTABLE TAPS AT 50W,

CONTROL 128WT
CONTROL 128W WITH TRANSFORMER FOR USE ON A 70.7V OR 100V DISTRIBUTED LINE. SELECTABLE TAPS AT 50W,

  • UM : EA
  • Estimated Weight: 17.5

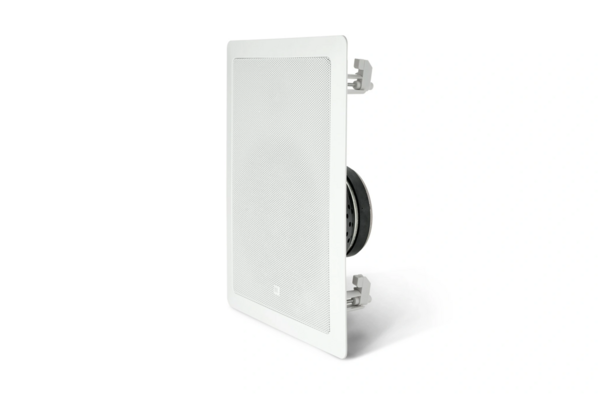

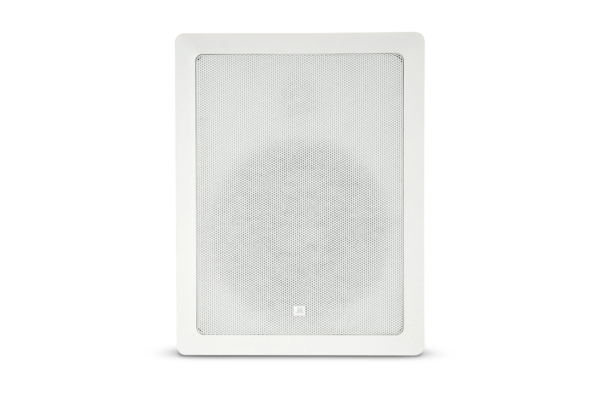

CONTROL 128WT is an in-wall loudspeaker from the JBL Professional Control Contractor series. It is designed for installed audio applications including foreground music and critical listening environments. Typical use cases include boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, and surround sound locations.

Features:

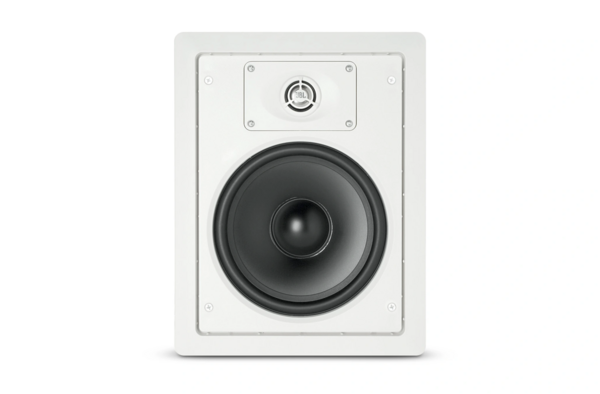

  • 200 mm polymer-coated aluminum-cone woofer with butyl rubber surround
  • 25 mm pure-titanium dome swivel aimable tweeter
  • High-slope crossover for natural midrange sound
  • Frequency response: 30 Hz – 20 kHz
  • Power handling: 60 W continuous, 120 W program, 240 W peak
Frequency Range 30 Hz - 20 kHz (-10 dB)
Power Rating 200 W Peak, 100 W Continuous Program Power, 50 W Continuous Pink Noise
Transformer Taps 70 V: 50 W, 25 W, 12 W, 6 W; 100 V: 50 W, 25 W, 12 W
Sensitivity 90 dB SPL
Coverage Angle 180°H x 160°V
Impedance 8ohms
Drivers LF: 200 mm polymer-coated aluminum cone with butyl rubber surround; HF: 25 mm pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability
Input Connectors Screw-down Euroblock-type connector, max wire size 14 AWG (1.5 mm²)
Crossover Network 2nd order Low Pass to woofer, 2nd order High Pass to tweeter
Included Accessories Cutout template and paint shield
