CONTROL 12C/T | COMPACT CEILING LOUDSPEAKER WITH 76 MM (3 IN) FULL-RANGE DRIVER. 68 HZ – 17 KHZ BANDWIDTH
CONTROL 12C/T
COMPACT CEILING LOUDSPEAKER WITH 76 MM (3 IN) FULL-RANGE DRIVER. 68 HZ – 17 KHZ BANDWIDTH
CONTROL 12C/T
COMPACT CEILING LOUDSPEAKER WITH 76 MM (3 IN) FULL-RANGE DRIVER. 68 HZ – 17 KHZ BANDWIDTH
- UM : EA
- Estimated Weight: 15.0

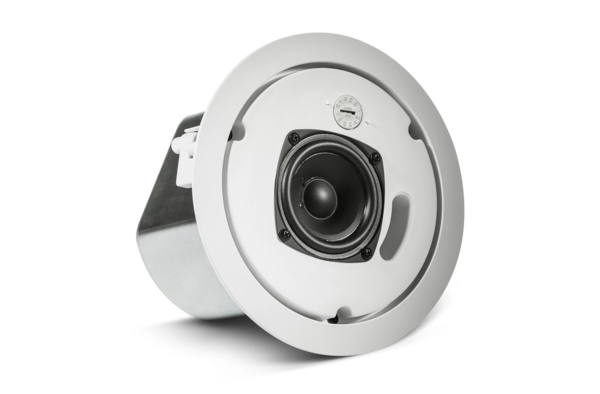

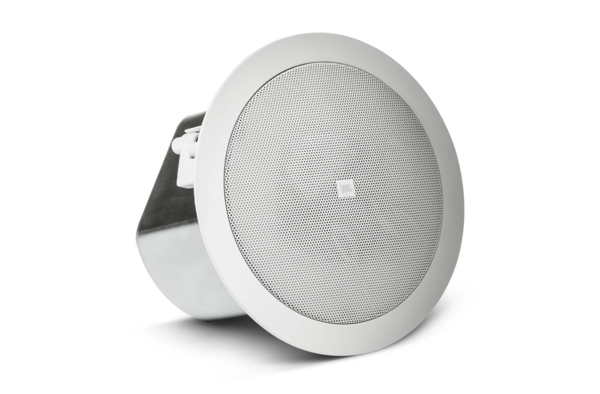

CONTROL 12C/T is a full-range ceiling loudspeaker featuring a 76 mm (3 inch) wide-bandwidth cone driver. The driver is mounted in a vented baffle constructed from UV-resistant UL94-V0 rated material. The unit includes an integrated backcan designed to facilitate installation.
Features:
- 76 mm (3 in) full-range driver
- Integrated backcan for easy installation
- Combined 70V/100V and low impedance operation
- 20W at 8Ω nominal
- 15W multi-tap at 70V/100V
- 68 Hz – 17 kHz bandwidth
- 130° coverage
| Frequency Range | 68 Hz – 17 kHz |
|---|---|
| Power Rating | 40W Continuous Program, 20W Continuous Pink Noise (80W peak), 100 hr |
| Transformer Taps | 15 W, 7.5 W, 3.8 W @ 70V and 100V, 1.9 W @ 70V only |
| Frequency Response | 95 Hz – 15 kHz |
| Sensitivity | 84 dB (1 kHz - 16 kHz) |
| Coverage Angle | 130° conical |
| Directivity Factor (Q) | 9.8 |
| Directivity Index | 7.4 dB |
| Maximum SPL | 97 dB (low-impedance, 103 dB peak), 96 dB (top 70V/100V tap) |
| Impedance | 8ohms (direct/bypass 8Ω setting) |
| Drivers | 76 mm polypropylene cone, butyl rubber surround, Kapton voice coil former, high temperature voice coil, aluminum coupling ring |
| Input Connectors | Removable locking 4-pin with screw-down terminals, max wire size 12 AWG (2.5 mm²) |
| Connector Wiring | Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru |
| Strain Reliefs | For two cables or two flex conduits via coupled clamping mechanism |
| Materials | ABS baffle with UL94-V0 and UL94-5VB flame rating, zinc-plated steel backcan |
| Safety Agency | UL1480, UL2043, NFPA90, NFPA70; S7232/UL Listed; Transformer UL registered per UL1876; ROHS; C-tick N108; CE compliant; Meets IEC60849/EN60849 |
| Safety Seismic Attachment | One point, top surface |
| Included Accessories | C-ring support plate, 2 tile support rails (2 ft or 600 mm spans), cutout template, paint shield, removable locking multi-pin connector, baffle |
| Optional Accessories | MTC-24NC new construction bracket, MTC-24MR mud-ring bracket, MTC-TCD thick-ceiling dog-ears, MTC-48TR tile rail (1200 mm spans) |
| Color | White |
| Backcan | Formed steel |
| Baffle/Rim | ABS baffle with UL94-V0 and UL94-5VB flame rating |
| Plenum Usage | Yes, integrated backcan |
