CONTROL 14C/T | TWO-WAY 100MM (4 IN) CO-AXIAL CEILING LOUDSPEAKER.100 MM (4 IN)HIGH OUTPUT DRIVER WITH POLYPROPYLENE
CONTROL 14C/T
TWO-WAY 100MM (4 IN) CO-AXIAL CEILING LOUDSPEAKER.100 MM (4 IN)HIGH OUTPUT DRIVER WITH POLYPROPYLENE
CONTROL 14C/T
TWO-WAY 100MM (4 IN) CO-AXIAL CEILING LOUDSPEAKER.100 MM (4 IN)HIGH OUTPUT DRIVER WITH POLYPROPYLENE
- UM : EA
- Estimated Weight: 18.0

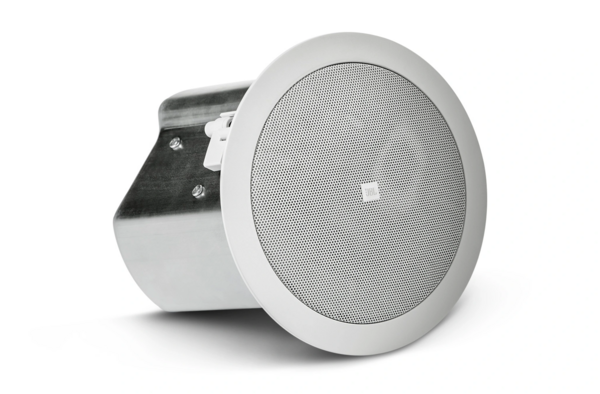

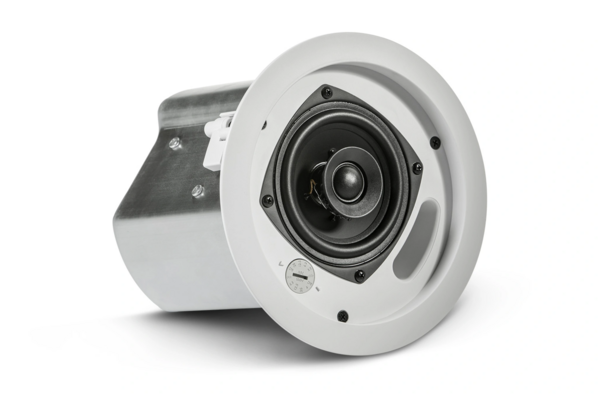

CONTROL 14C/T is a two-way, 4-inch coaxial ceiling loudspeaker. It includes a 100 mm (4 inch) cone driver and a 19 mm soft-dome liquid-cooled tweeter. The components are mounted in a vented, paintable baffle constructed from UV-resistant UL94-V0 and UL94-5HB rated materials. The loudspeaker features an integrated backcan designed for installation.
Features:
- 100 mm high output driver with polypropylene cone and butyl rubber surround
- 19 mm soft-dome liquid-cooled tweeter
- Integrated backcan for easy installation
- Dual conduit/cable clamps
- Combined 70V/100V and low impedance direct operation
- 30W at 8Ω nominal setting
- 25W multi-tap at 70V/100V
- 74 Hz – 20 kHz bandwidth
- 120° wide coverage
| Frequency Range (-10 dB) | 74 Hz – 20 kHz |
|---|---|
| Power Rating | 60W Continuous Program Power, 30W Continuous Pink Noise (120W peak) |
| Transformer Taps | 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only) |
| Frequency Response (±3 dB) | 100 Hz – 20 kHz |
| Sensitivity | 87 dB (1 kHz to 16 kHz) |
| Coverage Angle | 120° conical |
| Directivity Factor (Q) | 7.6 |
| Directivity Index (DI) | 8.1 dB |
| Maximum SPL (1m) | 101 dB (low-impedance, 108 dB peak), 101 dB (top 70V/100V tap) |
| Impedance | 8ohms (in direct/bypass 8Ω setting) |
| Crossover Network | 12 dB/oct low-pass to LF driver, 12 dB/oct high-pass to HF driver |
| Drivers | LF Driver: 100 mm, HF Driver: 19 mm |

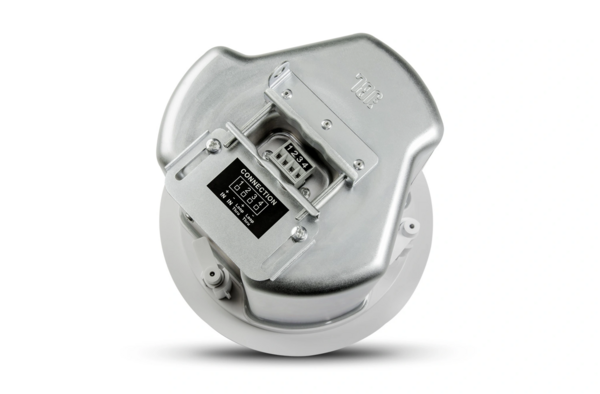

| Input Connectors | Removable locking 4-pin connector with screw-down terminals, max wire size 12 AWG |
| Connector Wiring | Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru |
| Strain Reliefs | For two cables or two flex conduits via coupled clamping mechanism |
| Materials | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan |
| Safety Agency | UL1480, UL2043, NFPA90, NFPA70; S7232/UL Listed; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB ratings; IEC60849/EN60849 compliant |
| Safety Seismic Attachment | One point, top surface |
| Included Accessories | C-ring support backing plate, 2 tile support rails, cutout template, paint shield, removable locking multi-pin connector, baffle |
| Optional Accessories | MTC-24NC new construction bracket, MTC-24MR mud-ring construction bracket, MTC-TCD thick-ceiling dog-ears, MTC-48TR tile rail |
| Color | White |
| Backcan | Formed steel (integrated backcan) |
| Baffle/Rim | ABS with UL94-V0 and UL94-5VB flame class fire rating |
| Plenum Usage | Yes, backcan included |
