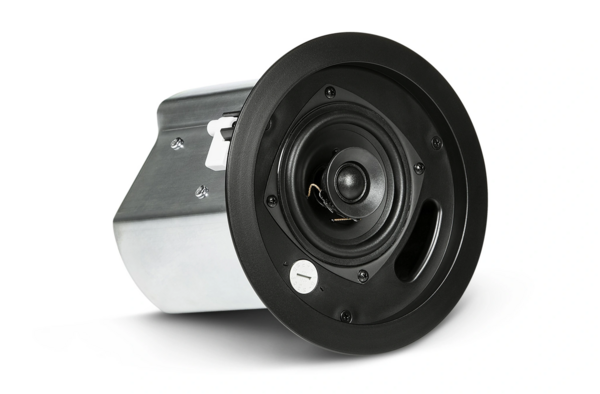

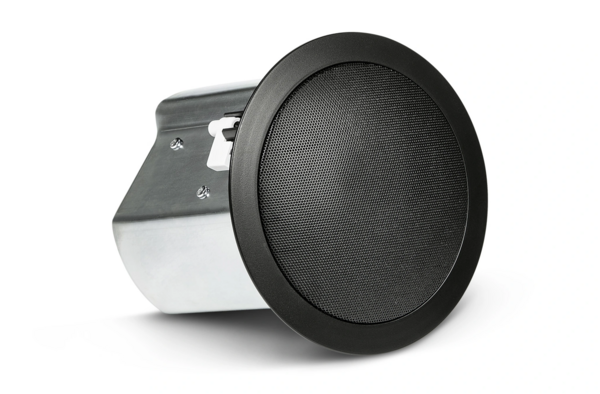

CONTROL 14C/T-BK | 4" 2-WAY COAXIAL CEILING LOUDSPEAKER WITH TRANSFORMER 70V BLACK

The Control 14C/T is a two-way coaxial ceiling loudspeaker featuring a 100 mm (4-inch) cone driver and a 19 mm soft-dome tweeter with liquid cooling. The drivers are mounted within a vented baffle constructed from UV-resistant materials complying with UL94-V0 and UL94-5HB flammability standards. The unit includes an integrated backcan designed to facilitate straightforward installation.

• 100 mm high output driver with polypropylene cone and butyl rubber surround
• 19 mm soft-dome liquid-cooled tweeter
• Integrated backcan for easy installation
• Dual conduit/cable clamps
• Combined 70V/100V and low impedance operation
• 30 Watts at 8o nominal
• 25W multi-tap at 70V/100V
• 74 Hz – 20 kHz frequency response
• 120° coverage
• Available in white or black

Frequency Range (-10dB)	74 Hz – 20 kHz
Power Rating	60 W continuous program power, 30 W continuous pink noise (120 W peak), 100 hr
Transformer Taps	25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only)
Frequency Response (±3 dB)	100 Hz – 20 kHz
Sensitivity	87 dB (1 kHz - 16 kHz)
Coverage Angle	120° conical
Maximum SPL (1m)	101 dB (low-impedance, 108 dB peak), 101 dB (top 70V/100V tap)
Impedance	8 ohms (direct/bypass 8 ohm setting)
Crossover Network	12 dB/oct low-pass to LF driver, 12 dB/oct high-pass to HF driver
Drivers	LF driver 100 mm; HF driver 19 mm
Input Connectors	Removable locking 4-pin connector with screw-down terminals; max wire size 12 AWG (2.5 mm2)
Materials	ABS baffle with UL94-V0 and UL94-5VB flame rating; zinc-plated steel backcan
Safety Agency Certifications	UL1480, UL2043, NFPA90 & NFPA70; UL Listed; Transformer UL registered per UL1876; RoHS, CE compliant
Plenum Usage	Yes, backcan included
