CONTROL 16C/T-BK | 6.5" 2-WAY COAXIAL CEILING LOUDSPEAKER BLACK, 30W MULTI-TAP@70V/100V, 50W @ 8OHMS

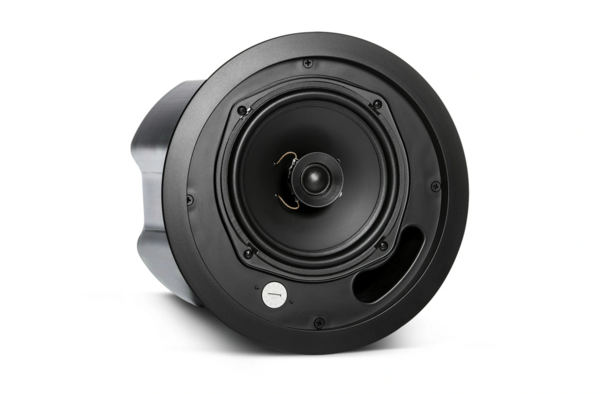

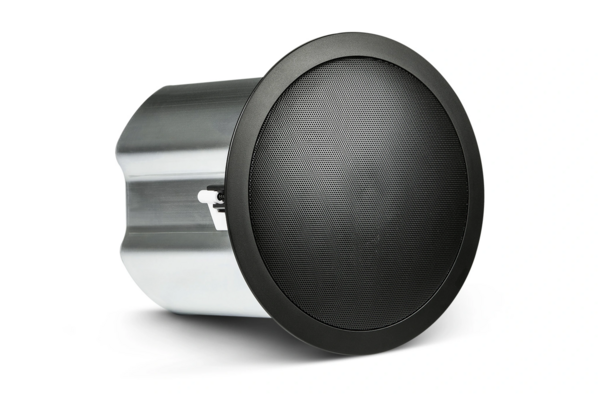

The Control 16C/T is a two-way, full-range ceiling loudspeaker featuring a 165 mm (6.5 inch) cone driver and a 19 mm soft-dome tweeter with liquid cooling. The drivers are mounted on a vented baffle constructed from UV-resistant materials compliant with UL94-V0 and UL94-5HB flammability standards. The assembly includes an integrated backcan designed to facilitate installation.

• 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
• 19 mm (0.75 in) soft-dome liquid-cooled tweeter
• Integrated backcan for easy installation
• Dual conduit/cable clamps
• Combined 70V/100V and low impedance operation
• 50 Watts at 8o nominal
• 30 Watts multi-tap at 70V/100V
• 62 Hz – 20 kHz bandwidth
• 110° coverage
• 91 dB sensitivity
• Available in white or black

Frequency Range	62 Hz – 20 kHz (-10 dB)
Power Rating	100 W Continuous Program Power, 50 W Continuous Pink Noise, 200 W peak
Transformer Taps	30 W, 15 W, 7.5 W @ 70V or 100V; 3.8 W @ 70V only
Sensitivity	91 dB (1 kHz - 16 kHz)
Coverage Angle	110° conical
Maximum SPL (1m)	108 dB low-impedance, 116 dB peak
Impedance	8 ohms (direct/bypass setting)
Crossover Network	12 dB/oct low-pass to LF driver, 12 dB/oct high-pass to HF driver
Input Connectors	Removable locking 4-pin connector with screw-down terminals, max wire size 12 AWG
Safety Agency	UL1480, UL2043, NFPA90 & NFPA70 certified; ROHS, C-tick N108, CE compliant
