CONTROL 19CS | 8" IN-CEILING SUBWOOFER, NESTED CHAMBER DESIGN, LINEAR APERTURE PORT, 42HZ – 200HZ, 200W

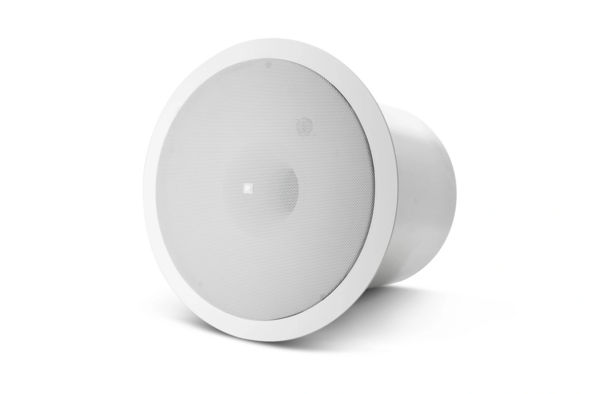

The Control 19CS is an in-ceiling speaker featuring a low-profile design intended for high-output bass performance. It incorporates a 200 mm (8 inch) long-excursion driver housed within a compact enclosure utilizing a Nested Chamber design and a Linear Dynamic Aperture port to optimize acoustic output.

The speaker includes JBL’s SonicGuard overload protection to maintain operational stability and system reliability at elevated volume levels. It is supplied with a baffle, backcan, and tile rails to facilitate installation and inventory management. The unit is designed for straightforward installation and wiring.

• Nested Chamber design and Linear Dynamic Aperture port design
• JBL’s SonicGuard overload protection
• Packaged with grille, backcan and tile rails for fast installation and easy stocking.

Frequency Range	42 Hz - 200 Hz
Power Rating	200 W Continuous Program Power, 100 W Continuous Pink Noise (400W peak), 100 hrs
Sensitivity	95 dB SPL in ceiling near corner, 89 dB in center of ceiling
Coverage Angle	180° conical
Maximum SPL (1m)	109 dB (low-impedance), 115 dB peak center of ceiling; 115 dB low-impedance, 121 dB peak near corner
Impedance	8 ohms
Input Connectors	Removable locking connector with screw-down terminals
Drivers	200 mm (8.0 in) subwoofer
Safety Agency	UL1480, UL2043, NFPA90 & NFPA 70 compliant; S7232/UL Listed Signaling Speaker; Transformer UL registered per UL1876; IEC60849/EN60849 compliant
Overload Protection	Full-range power limiting to protect network and transducers (on Control 19CS model only)
