CONTROL 226C/T | 6.5” COAX CEILING LOUDSPEAKER. TRUE-BROADBAND 120º COVERAGE. 150W, 47 HZ TO 19KHZ FREQUENCY

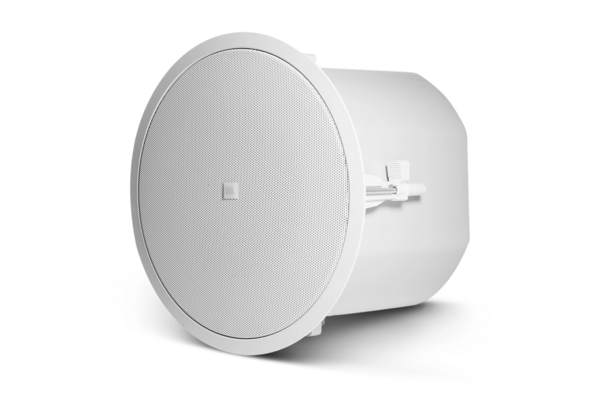

The JBL Professional Control 226C/T is a 6.5-inch coaxial ceiling loudspeaker equipped with a high-frequency compression driver. It is designed for ceiling mount installations, providing a compact solution for in-ceiling audio applications. The coaxial configuration integrates the woofer and high-frequency driver into a single assembly to deliver a coherent sound source from a compact enclosure.

• 120° broadband pattern control
• Coaxial design with 6.5 in Kevlar-reinforced woofer and 1 in compression driver
• Clear speech and vocals with extended frequency response
• 150 Watts power handling
• High-slope crossover network for constant coverage and smooth midrange
• Integrated back can and clean grille

Frequency Range	47 Hz - 19 kHz
Power Rating	150 W continuous pink noise (600 W peak), 2 hrs; 100 W continuous pink noise (400 W peak), 100 hrs
Transformer Taps	68W, 34W, 17W, 8.5W @ 70V, plus transformer bypass
Sensitivity	90 dB (1 kHz - 16 kHz)
Coverage Angle	120° conical, constant directivity
Maximum SPL	112 dB (low-impedance), 118 dB peak; 108 dB (70V/100V tap)
Impedance	8 ohms (direct/bypass setting)

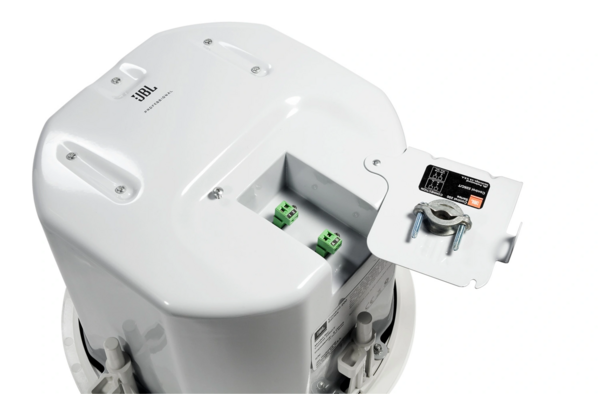

Input Connectors	Removable locking connector with screw-down terminals
Safety Agency	UL1480, UL2043, NFPA90 & NFPA 70 compliant; UL1876 registered transformer; IEC60849/EN60849 compliant
Plenum Usage	Yes, backcan included
