CONTROL 23-1L
LOW-IMPEDANCE-ONLY VERSION OF CONTROL 23-1 (&-WH), WITHOUT 70V/100V TRANSFORMER, 8 OHMS ONLY.
CONTROL 23-1L
LOW-IMPEDANCE-ONLY VERSION OF CONTROL 23-1 (&-WH), WITHOUT 70V/100V TRANSFORMER, 8 OHMS ONLY.
- UM : EA

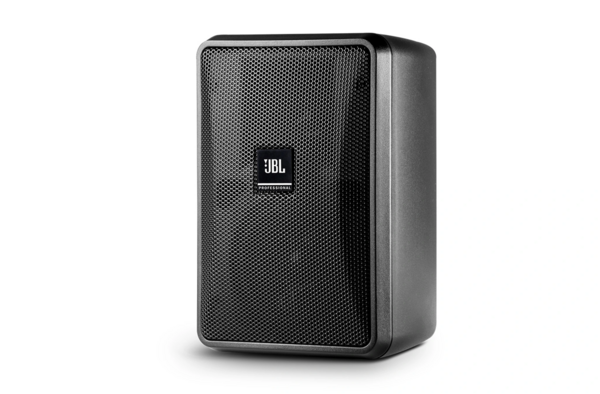

The Control 23-1L is an ultra-compact, two-way speaker with an 8-ohm impedance and a 3-inch driver. It is designed for both indoor and outdoor use, featuring consistent sound dispersion suitable for background and foreground audio applications. The speaker supports versatile mounting options and has a contemporary design intended to integrate with various architectural styles.
- 3" woofer with woven fiberglass cone
- 1/2" PEI diaphragm tweeter with fluid cooling
- Built-in InvisiBall mounting hardware, plus available U-bracket
- Weather-resistant enclosure and transducers
- Wide 100° x 100° coverage
- 50 Watt power handling (100 Watt program)
- Frequency response 70 Hz – 20 kHz
| Frequency Range | 70 Hz to 20 kHz |
|---|---|
| Power Rating | 100W Continuous Program (2 hrs) |
| Maximum Input Voltage | 17.2 V RMS (2 hrs), 34.4 V peak |
| Maximum SPL (1m) | 103 dB average Continuous Pink Noise (109 dB peak) |
| Sensitivity | 86 dB, 1W/1m (average 100 Hz – 10 kHz) |
| Coverage Angle | 100° horizontal × 100° vertical |
| Impedance | 8 ohms |
| Crossover Type | 2nd order low-pass, 2nd order high-pass |
| Outdoor Capability | IP-44 per IEC529 (IP-55 with optional WeatherMax baffle and panel cover); exceeds MilSpec 810, passes MilStd-202F and ASTM G85 |
| Agency Rating | ROHS-compliant |
