CONTROL 23-1L-WH | LOW-IMPEDANCE-ONLY VERSION OF CONTROL 23-1 (&-WH), WITHOUT 70V/100V TRANSFORMER, 8 OHMS ONLY.
CONTROL 23-1L-WH
LOW-IMPEDANCE-ONLY VERSION OF CONTROL 23-1 (&-WH), WITHOUT 70V/100V TRANSFORMER, 8 OHMS ONLY.
CONTROL 23-1L-WH
LOW-IMPEDANCE-ONLY VERSION OF CONTROL 23-1 (&-WH), WITHOUT 70V/100V TRANSFORMER, 8 OHMS ONLY.
- UM : EA

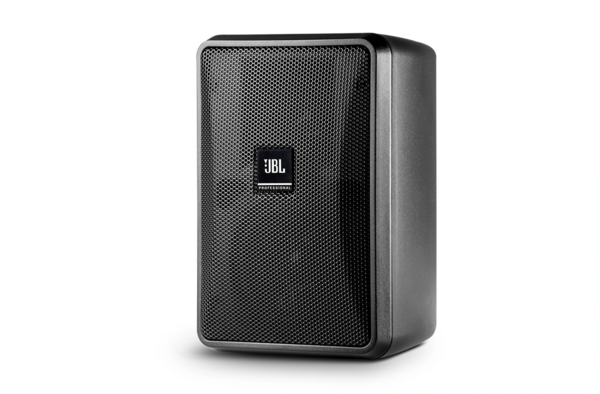

The Control 23-1L is an ultra-compact two-way speaker featuring a 3-inch driver and an 8-ohm impedance. Designed for both indoor and outdoor use, it provides wide coverage and consistent sound dispersion. The speaker's mounting system supports versatile installation options, and its enclosure is finished with a design suitable for integration into various environments.
- 3" woofer with woven fiberglass cone
- 1/2" PEI diaphragm tweeter with fluid cooling
- Built-in InvisiBall mounting hardware and available U-bracket
- Weather resistant enclosure and transducers
- Wide 100° x 100° coverage
- 50 Watt power handling (100 Watt program)
- Frequency response 70 Hz – 20 kHz
| Frequency Range | 70 Hz to 20 kHz |
|---|---|
| Power Rating | 100W Continuous Program (2 hrs) |
| Maximum Input Voltage | 17.2 V RMS (2 hrs), 34.4 V peak |
| Maximum SPL (1m) | 103 dB average Continuous Pink Noise (109 dB peak) |
| Sensitivity | 86 dB, 1W/1m (average 100 Hz – 10 kHz) |
| Coverage Angle | 100°H x 100°V |
| Directivity Factor (Q) | 5.8 (averaged 1kHz – 16kHz) |
| Directivity Index (DI) | 7.2 dB (averaged 1kHz – 16kHz) |
| Impedance | 8 ohms |
| Crossover Type | 2nd order low-pass, 2nd order high-pass |
