CONTROL 24C | 4" TWO-WAY VENTED CEILING SPEAKER, 80HZ – 20KHZ, 86DB SENSITIVITY, 80W PROGRAM AND 40W PINK NOISE
CONTROL 24C
4" TWO-WAY VENTED CEILING SPEAKER, 80HZ – 20KHZ, 86DB SENSITIVITY, 80W PROGRAM AND 40W PINK NOISE
CONTROL 24C
4" TWO-WAY VENTED CEILING SPEAKER, 80HZ – 20KHZ, 86DB SENSITIVITY, 80W PROGRAM AND 40W PINK NOISE
- UM : EA
- Estimated Weight: 7.5

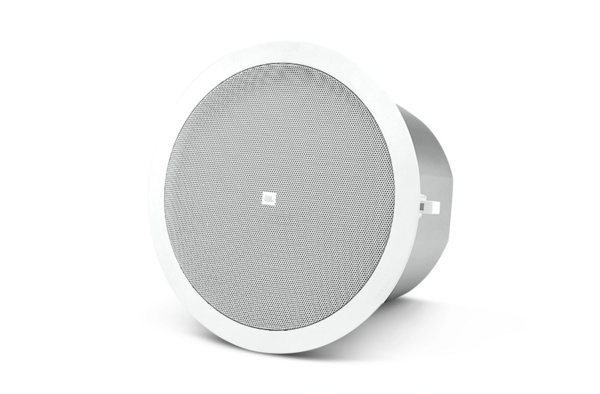

The Control 24C is a compact in-ceiling loudspeaker designed for background music and paging applications. It delivers full-range sound suitable for various audio environments.
- Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (0.75 in) titanium coated diffraction-loaded tweeter
- High power, wide frequency response, and low distortion for high sound levels
- Wide coverage reduces number of speakers needed, lowering installation cost
- JBL SonicGuard™ overload protection for higher operational levels and improved reliability
- Includes grille, backcan, and tile rails for fast installation and easy stocking
| Frequency Range | 80 Hz - 20 kHz |
|---|---|
| Power Rating | 80 W continuous program power, 40 W continuous pink noise (160 W peak) |
| Sensitivity | 86 dB SPL @ 1 m |
| Coverage Angle | 130° conical |
| Maximum SPL | 102 dB (108 dB peak) |
| Impedance | 16 ohms |
| Input Connectors | Removable 4-pin locking connector with screw-down terminals |
| Safety Agency | UL1480, UL2043, NFPA90, NFPA70 compliant; UL Listed Signaling Speaker; Transformer UL registered |
| Plenum Usage | Yes, backcan included |
