CONTROL 24C MICRO | 4" COMPACT CEILING SPKR 8MSTRPK

  • MAP: $110.00 / EA
  • List Price: $110.00 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 2
  • Case Quantity: 2
  • Sign In or Submit RFQ for accurate lead times
4" COMPACT CEILING SPKR 8MSTRPK
4" COMPACT CEILING SPKR 8MSTRPK
Click image to enlarge
4" COMPACT CEILING SPKR 8MSTRPK
4" COMPACT CEILING SPKR 8MSTRPK

CONTROL 24C MICRO
4" COMPACT CEILING SPKR 8MSTRPK

  • UM : EA

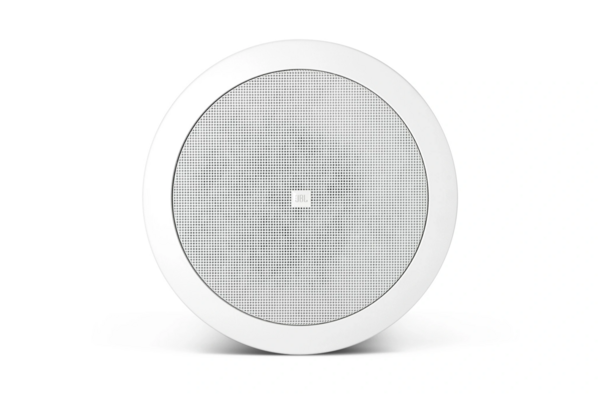

The Control 24C Micro is a compact ceiling-mounted loudspeaker designed for background music and paging applications. It is engineered to deliver full-range audio performance within a small form factor suitable for in-ceiling installation.

  • 150° coverage
  • Smooth frequency response
  • 4.5 in (115 mm) woofer with graphite cone and butyl rubber surround
  • 0.5 in (12 mm) polycarbonate tweeter
  • 8 ohms impedance, 15 W power handling
  • 4 in (100 mm) depth
  • Includes grille, backcan, and tile rails for installation
    • Frequency Range 85 Hz - 25 kHz
    Power Rating 30 W Continuous Program Power, 15 W Continuous Pink Noise
    Sensitivity 86 dB (100 Hz - 10 kHz)
    Crossover Frequency 3.5 kHz
    Maximum SPL (1m) 98 dB (104 dB peak)
    Coverage Angle 150° conical
    Impedance 7.1 ohms
    Input Connectors Screw-down terminals
    Safety Agency UL1480, UL2043, NFPA90, NFPA70, UL Listed, Transformer UL registered, IEC60849/EN60849 compliant
    Plenum Usage Yes, backcan included
