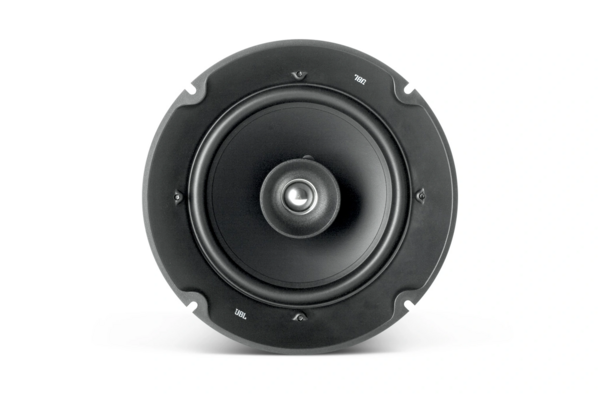

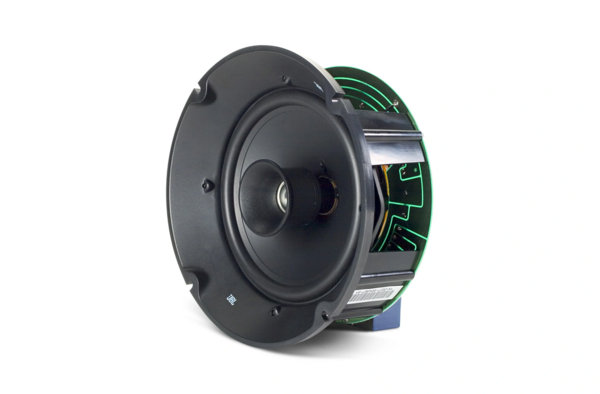

CONTROL 26-DT | 8" CEILING SPEAKER TRANSDUCER ASSEMBLY. DRIVER, CROSSOVER NETWORK AND 70V/100V

The Control 26-DT is a 6.5-inch ceiling loudspeaker transducer assembly designed for installation in standard ceiling backcans that accommodate 200 mm (8-inch) drivers. The assembly integrates a speaker driver and associated components configured for ceiling mounting applications.

• Fits standard backcans for 8" speakers
• Includes transducer, network, and transformer
• Advanced crossover network for natural sound and even coverage
• 60 W transformer for 70 V or 100 V speaker lines
• Coaxial woofer with butyl rubber surround and titanium coated tweeter

Frequency Range	80 Hz - 20 kHz
Power Rating	See transformer taps
Transformer Taps	60W, 30W, 15W, 7.5W @ 70V
Coverage Angle	90° conical
Directivity Index (DI)	4.6 (500 Hz to 4 kHz)
Maximum SPL (1m)	106 dB (70V/100V tap)
Drivers	LF Driver 165 mm, HF Driver 19 mm
Input Connectors	Screw locking barrier strip for bare wire
Sensitivity	89 dB (100 Hz - 10 kHz)
Safety Agency	IEC60849 / EN60849 compliant
