CONTROL 26C | 6.5" 2-WAY VENTED CEILING SPEAKER, 75HZ – 20KHZ, 89DB SENSITIVITY, 150W PROGRAM AND 75W PINK NOISE
CONTROL 26C
6.5" 2-WAY VENTED CEILING SPEAKER, 75HZ – 20KHZ, 89DB SENSITIVITY, 150W PROGRAM AND 75W PINK NOISE
CONTROL 26C
6.5" 2-WAY VENTED CEILING SPEAKER, 75HZ – 20KHZ, 89DB SENSITIVITY, 150W PROGRAM AND 75W PINK NOISE
- UM : EA
- Estimated Weight: 9.0

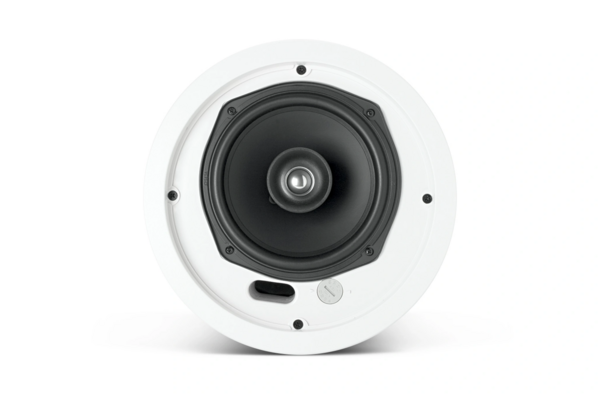

The Control 26C is a ceiling loudspeaker featuring a coaxial transducer assembly with a 6.5-inch woofer and a 0.75-inch titanium-coated tweeter. This configuration is designed to provide sound output across an extended coverage area.
- Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated tweeter
- High power, wide frequency response, low distortion
- JBL SonicGuard overload protection for higher operational levels and reliability

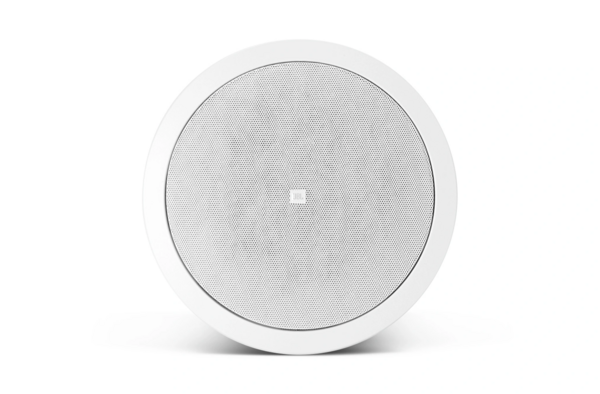

- Includes grille, backcan, and tile rails for installation
| Frequency Range | 75 Hz - 20 kHz |
|---|---|
| Power Rating | 150 W Continuous Program Power |
| Nominal Sensitivity | 89 dB, 1m/1 W |
| Coverage Angle | 110° conical |
| Directivity Index | 4.6 (500 Hz to 4 kHz average) |
| Impedance | 16 ohms |
| Maximum SPL | 107 dB (113 dB peak) |
| Safety Agency | UL1480, UL2043, NFPA90, NFPA 70 certified; S7232/UL Listed; Transformer UL registered per UL1876; IEC60849/EN60849 compliant |
| Plenum Usage | Yes, backcan included |
