CONTROL 28-1L | 8" 2-WAY LOW-IMPEDANCE-ONLY VERSION OF CONTROL 28-1 SPEAKER , 8OHMS ONLY, BLACK (PRICE EA,BOXED PR)
CONTROL 28-1L
8" 2-WAY LOW-IMPEDANCE-ONLY VERSION OF CONTROL 28-1 SPEAKER , 8OHMS ONLY, BLACK (PRICE EA,BOXED PR)
CONTROL 28-1L
8" 2-WAY LOW-IMPEDANCE-ONLY VERSION OF CONTROL 28-1 SPEAKER , 8OHMS ONLY, BLACK (PRICE EA,BOXED PR)
- UM : EA
- Estimated Weight: 15.0

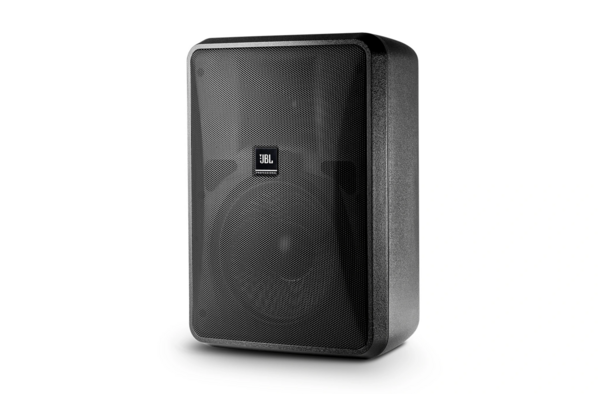

The Control 28-1L is a two-way speaker system featuring an 8-inch driver and an 8-ohm nominal impedance. It is designed for both indoor and outdoor use, providing wide and consistent sound coverage. The speaker's enclosure supports versatile mounting options suitable for various installation environments.
- 8" woofer with woven fiberglass cone
- 1" PEI diaphragm tweeter with fluid cooling
- Built-in InvisiBall mounting hardware plus available U-bracket
- Weather resistant enclosure and transducers
- Wide 100° x 100° coverage
- 120 Watt power handling (240 Watt program)
- Frequency response 45 Hz – 20 kHz
| Frequency Range | 45 Hz to 20 kHz |
|---|---|
| Power Rating | 240 W Continuous Program (2 hrs) |
| Maximum Input Voltage | 27.5 V RMS (2 hrs), 55.0 V peak |
| Maximum SPL (1m) | 112 dB continuous, 118 dB peak |
| Sensitivity | 91 dB, 1W/1m (100 Hz – 10 kHz) |
| Coverage Angle | 100°H x 100°V |
| Directivity Factor (Q) | 7.3 (1kHz – 16kHz) |
| Impedance | 8 ohms |
| Crossover Type | 2nd order low-pass, 1st order high-pass with conjugate shaping |
| Outdoor Capability | IP44 per IEC529; IP55 with optional WeatherMax baffle; exceeds MilSpec 810 for humidity, salt-spray, temperature & UV |
