CONTROL 312CS | 2-WAY, HIGH OUTPUT INDOOR/OUTDOOR MONITOR LOUDSPEAKER WITH 260MM (10 IN) LF AND 2414H-C

  • MAP: $600.00 / EA
  • List Price: $600.00 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 1
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
2-WAY, HIGH OUTPUT INDOOR/OUTDOOR MONITOR LOUDSPEAKER WITH 260MM (10 IN) LF AND 2414H-C
Click image to enlarge

CONTROL 312CS
2-WAY, HIGH OUTPUT INDOOR/OUTDOOR MONITOR LOUDSPEAKER WITH 260MM (10 IN) LF AND 2414H-C

  • UM : EA
  • Estimated Weight: 18.5

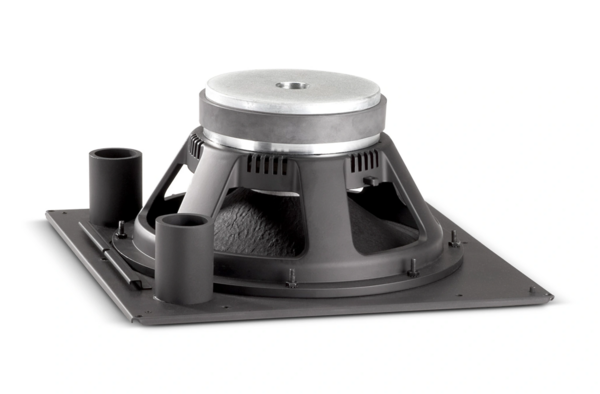

The Control 312CS is a 12-inch in-ceiling subwoofer loudspeaker designed to extend low-frequency response when used in conjunction with JBL Control 321, 322, and 328 loudspeaker systems or other full-range loudspeaker systems. It is engineered to provide additional bass output within ceiling-mounted audio installations.

  • Kevlar-reinforced 300 mm (12 inch) subwoofer driver with 75 mm (3 inch) voice coil
  • High power handling of 400 Watts with high sensitivity for high SPL capability
    • Frequency Range (±3 dB) 34 Hz – 3.5 kHz
    Sensitivity 99 dB in ceiling near corner, 93 dB in center of ceiling
    Frequency Range (-10 dB) 30 Hz – 4.5 kHz
    Maximum SPL (1m) 125 dB low-impedance, 131 dB peak center of ceiling
    Impedance 8 ohms
    Power Rating 400 W continuous pink noise (1000 W peak), 2 hrs; 250 W continuous pink noise (600 W peak), 100 hrs
    Input Connectors Screw locking barrier strip for bare wire
    Drivers 300 mm (12 in) subwoofer
    Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan; UL listed signaling speaker; Transformer UL registered per UL1876; In accordance with IEC60849/EN60849
    Coverage Angle Omnidirectional
