2-WAY HIGH OUTPUT INDOOR/OUTDOOR MONITOR LOUDSPEAKER 60W 70V/100V MULTI-TAP TRANSFORMER.
Click image to enlarge

CONTROL 321CT
2-WAY HIGH OUTPUT INDOOR/OUTDOOR MONITOR LOUDSPEAKER 60W 70V/100V MULTI-TAP TRANSFORMER.

  • UM : EA

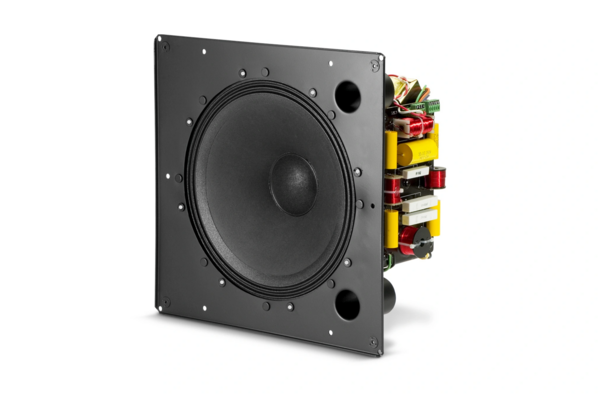

The Control 321CT is a 12-inch coaxial ceiling loudspeaker featuring a high-frequency compression driver. The design integrates a coaxial point source configuration intended for ceiling installation.

  • 90° broadband pattern control
  • 300 mm (12 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil
  • 25 mm (1 in) compression driver
  • Extraordinary clarity for speech and vocals, extended frequency response for music
  • 250 Watt power handling with high sensitivity for high SPL
  • Advanced high-slope crossover for constant coverage and natural midrange
    • Frequency Range 34 Hz – 18 kHz
    Power Rating 250 W continuous pink noise (1000 W peak), 2 hrs; 200 W continuous pink noise (800 W peak), 100 hrs
    Transformer Taps 68W, 34W, 17W, 8.5W @ 70V
    Frequency Response 47 Hz – 16 kHz (±3 dB)
    Coverage Angle 90° conical, constant directivity
    Directivity Factor (Q) 8.7 (1 kHz - 16 kHz)
    Directivity Index (DI) 9.4 dB (1 kHz - 16 kHz)
    Sensitivity 94 dB (1 kHz - 16 kHz)
    Crossover Network 1.8 kHz, 3rd order (18 dB/oct) high-pass with conjugate to HF, 2nd order low-pass to LF
    Maximum SPL (1m) 118 dB (top 70V/100V tap)
    Input Connectors Screw locking barrier strip for bare wire
    Drivers LF Driver: 300 mm (12 in), HF Driver: compression driver, 25 mm (1 inch) coil
    Safety Agency UL1480, UL2043, NFPA90 & NFPA 70 compliant; UL Listed Signaling Speaker; Transformer UL registered per UL1876; IEC60849/EN60849 compliant
    Plenum Usage Yes, with accessory backcan
