CONTROL 322C | HIGH OUTPUT 12' CEILING COAX

  • MAP: $675.00 / EA
  • List Price: $838.00 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 1
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT 12' CEILING COAX
HIGH OUTPUT 12' CEILING COAX
Click image to enlarge
HIGH OUTPUT 12' CEILING COAX
HIGH OUTPUT 12' CEILING COAX

CONTROL 322C
HIGH OUTPUT 12' CEILING COAX

  • UM : EA
  • Estimated Weight: 26.0

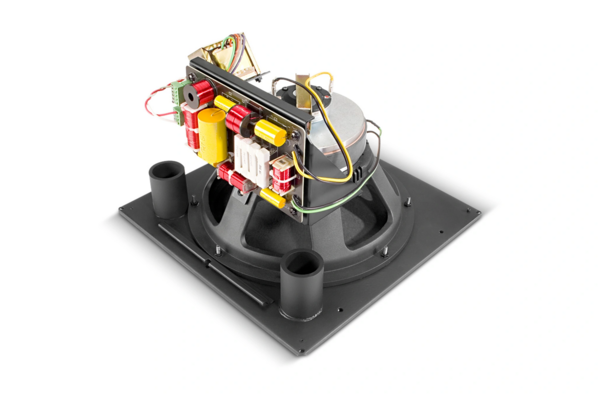

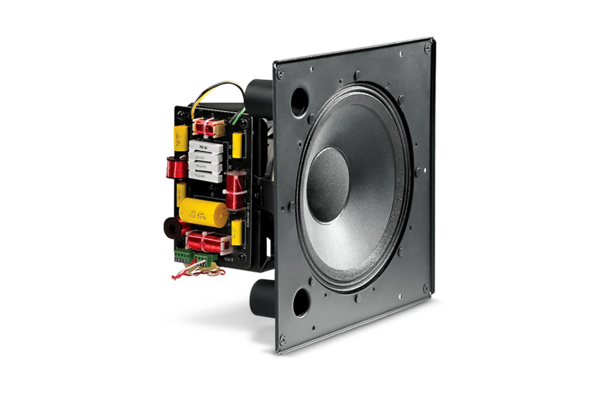

The Control 322C is a 12-inch coaxial ceiling loudspeaker designed for high output performance. It features a coaxial point source configuration that integrates a woofer and a tweeter into a single assembly, optimized for ceiling installation.

  • 90° broadband pattern control
  • Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 in) voice coil
  • Medium-format compression driver
  • Clarity for speech and vocals, extended frequency response for music
  • 400 Watts power handling with high sensitivity
  • Advanced high-slope crossover for constant coverage and smooth midrange
    • Frequency Range 32 Hz – 20 kHz
    Power Rating 400 W continuous pink noise (1600 W peak), 2 hrs; 250 W continuous pink noise (1000 W peak), 100 hrs
    Sensitivity 95 dB (1 kHz - 16 kHz)
    Frequency Response (±3 dB) 48 Hz – 19 kHz
    Coverage Angle 90° conical, constant directivity
    Directivity Factor (Q) 9 (1 kHz - 16 kHz)
    Directivity Index (DI) 9.5 dB (1 kHz - 16 kHz)
    Crossover Network 1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
    Impedance 8 ohms
    Maximum SPL (1m) 121 dB (127 dB peak)
