CONTROL 322CT | CONTROL 322C WITH PRE-ATTACHED 100W 70V/100V MULTI-TAP TRANSFORMER. TAPS AT 100W, 50W & 25W

  • MAP: $735.00 / EA
  • List Price: $910.52 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 1
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
CONTROL 322C WITH PRE-ATTACHED 100W 70V/100V MULTI-TAP TRANSFORMER. TAPS AT 100W, 50W & 25W
CONTROL 322C WITH PRE-ATTACHED 100W 70V/100V MULTI-TAP TRANSFORMER. TAPS AT 100W, 50W & 25W
Click image to enlarge
CONTROL 322C WITH PRE-ATTACHED 100W 70V/100V MULTI-TAP TRANSFORMER. TAPS AT 100W, 50W & 25W
CONTROL 322C WITH PRE-ATTACHED 100W 70V/100V MULTI-TAP TRANSFORMER. TAPS AT 100W, 50W & 25W

CONTROL 322CT
CONTROL 322C WITH PRE-ATTACHED 100W 70V/100V MULTI-TAP TRANSFORMER. TAPS AT 100W, 50W & 25W

  • UM : EA

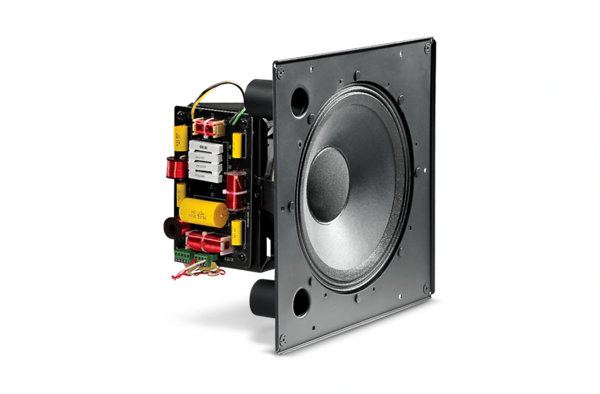

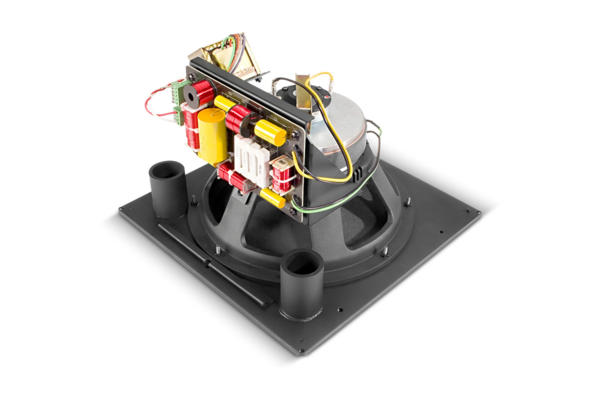

The 322CT is a 12-inch coaxial ceiling loudspeaker designed for ceiling installation. It features a coaxial point source configuration to provide sound output from a single location.

  • Consistent 90° broadband pattern control
  • Kevlar-reinforced 300 mm woofer with 75 mm voice-coil cone
  • Medium-format compression driver
  • Extraordinary clarity for speech and vocals with extended frequency response
  • Power handling of 400 Watts with high sensitivity for high SPL capability
  • Advanced high-slope crossover network for constant coverage and smooth midrange
    • Frequency Range 32 Hz – 20 kHz
    Power Rating see transformer taps
    Transformer Taps 100W, 50W, 25W, 12.5W @ 70V
    Frequency Response 48 Hz – 19 kHz ±3 dB
    Coverage Angle 90° conical, constant directivity
    Directivity Factor (Q) 9 (1k - 16kHz)
    Directivity Index (DI) 9.5 dB (1k - 16kHz)
    Sensitivity 95 dB (1 kHz - 16 kHz)
    Maximum SPL 121 dB (1m, top 70V/100V tap)
    Input Connectors Screw locking barrier strip for bare wire
