CONTROL 328CT | 8” COAX CEILING SPEAKER 60W 70V/100V MULTI-TAP TRANSFORMER 68W, 34W & 17W

  • MAP: $425.00 / EA
  • List Price: $525.09 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 1
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
8” COAX CEILING SPEAKER 60W 70V/100V MULTI-TAP TRANSFORMER 68W, 34W & 17W
8” COAX CEILING SPEAKER 60W 70V/100V MULTI-TAP TRANSFORMER 68W, 34W & 17W
Click image to enlarge
8” COAX CEILING SPEAKER 60W 70V/100V MULTI-TAP TRANSFORMER 68W, 34W & 17W
8” COAX CEILING SPEAKER 60W 70V/100V MULTI-TAP TRANSFORMER 68W, 34W & 17W

CONTROL 328CT
8” COAX CEILING SPEAKER 60W 70V/100V MULTI-TAP TRANSFORMER 68W, 34W & 17W

  • UM : EA
  • Estimated Weight: 13.0

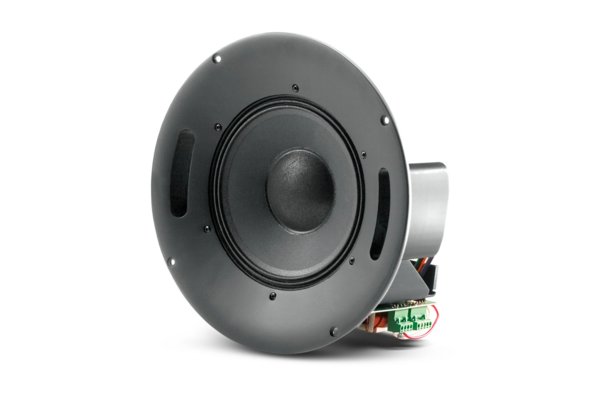

The Control 328CT is an 8-inch coaxial ceiling loudspeaker featuring a high-frequency compression driver. It is designed as a point-source loudspeaker with a coaxial driver configuration to provide consistent sound dispersion suitable for ceiling installation.

  • 120° broadband pattern control covers a large area
  • Shaped mounting baffle provides 300 mm horn pattern control from 200 mm driver
  • 200 mm woofer with Kevlar-reinforced cone and 50 mm voice-coil
  • 25 mm compression driver
  • Extraordinary clarity for speech and vocals with extended frequency response
  • 250 Watt power handling with high sensitivity for high SPL capability

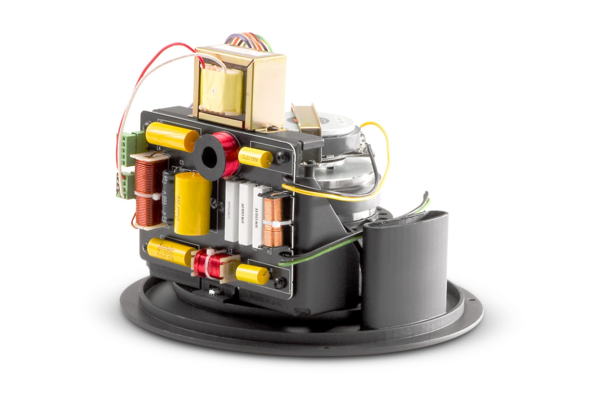

  • Advanced high-slope crossover for constant coverage and natural midrange
    • Frequency Range 45 Hz – 18 kHz
    Power Rating See transformer taps
    Transformer Taps 68W, 34W, 17W, 8.5W @ 70V
    Frequency Response 60 Hz – 16 kHz ±3 dB
    Coverage Angle 120° conical, constant directivity
    Impedance 8 ohms
    Sensitivity 93 dB (1 kHz – 16 kHz)
    Maximum SPL 118 dB (1m, top 70V/100V tap)
    Crossover Network 1.9 kHz, 3rd order high-pass (18 dB/oct)
    Input Connectors Screw locking barrier strip for bare wire
