CONTROL 40CS/T | DIRECT-RADIATING IN-CEILING SUBWOOFER WITH 8" DRIVER, BUILT-IN CROSSOVER NETWORK WITH OUTPUTS FOR
CONTROL 40CS/T
DIRECT-RADIATING IN-CEILING SUBWOOFER WITH 8" DRIVER, BUILT-IN CROSSOVER NETWORK WITH OUTPUTS FOR
CONTROL 40CS/T
DIRECT-RADIATING IN-CEILING SUBWOOFER WITH 8" DRIVER, BUILT-IN CROSSOVER NETWORK WITH OUTPUTS FOR
- UM : EA

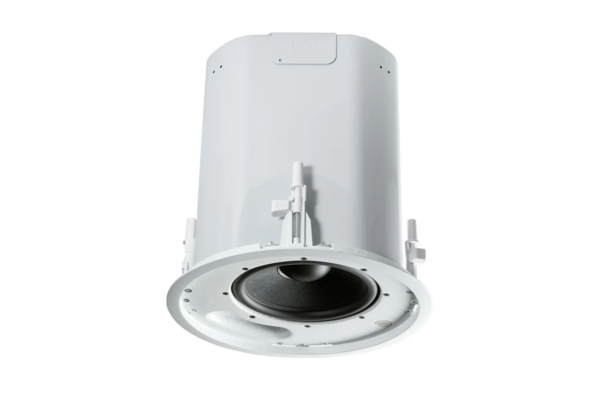

The Control 40CS/T is an in-ceiling subwoofer featuring an 8-inch direct-radiating driver and an integrated passive crossover network. It is designed to function as part of a subwoofer-satellite system, delivering low-frequency sound reproduction when paired with compatible satellite speakers such as the Control 42. The subwoofer supports operation through a 70V/100V distributed line or in direct mode and can be configured with a powered crossover for use with the Control Contractor in-ceiling speaker line to optimize bass response.
- Extended Bass Response
- Passive Crossover Network
- Switchable 70V/100V or Low-Z
Frequency Range | 32 Hz - 300 Hz |
---|---|
Power Rating | 200 W Continuous Program Power, 100 W Continuous Pink Noise (400 W peak) |
Sensitivity | 95 dB (near corner), 89 dB (center of ceiling) |
Transformer Taps | 80 W, 40 W, 20 W, 10 W (70V only), plus transformer bypass |
Impedance | 8 ohms (bypass mode) |
Drivers | 200 mm (8 in) subwoofer |
Termination | Screw-down removable locking clip-in connector |
Satellite Outputs | Connectors for 2 or 4 Control 42C satellite speakers |
Maximum SPL (1m) | 109 dB (low-impedance), 115 dB peak (center of ceiling), 121 dB peak (near corner) |
Safety Agency | UL1480, UL2043, NFPA90 & NFPA 70 compliant; UL listed signaling speaker; Transformer UL registered |
