CONTROL 45C/T | EXTREMELY CONSISTENT 120° BROADBAND PATTERN CONTROL FEATURING JBL'S EXCLUSIVE CONICAL RADIATION

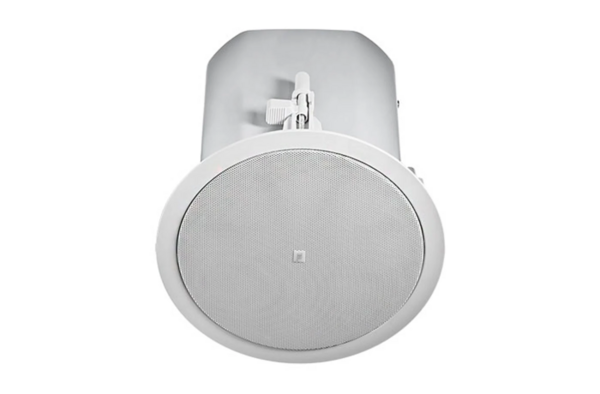

The Control 45C/T is a two-way 5.25-inch coaxial ceiling loudspeaker designed for professional audio applications. It features a coaxial driver configuration that provides wide bandwidth frequency response and uniform coverage. The compact ceiling-mount design allows for installation in restricted spaces while maintaining consistent sound distribution.

• Consistent 120° broadband pattern control with JBL's conical Radiation Boundary Integrator (RBI) technology
• Wide, consistent full-range coverage with small ceiling footprint
• Coaxial design with 130 mm polypropylene-coated paper cone and 20 mm soft-dome tweeter on 210 mm wave guide
• Bass extension down to 55 Hz
• 8 ohm and 70V/100V operation
• Integrated backcan for easy blind-mount installation with grille and tile rails included

Frequency Range	55 Hz – 20 kHz (-10dB)
Power Rating	150 W Continuous Program Power, 75 W Continuous Pink Noise (300 W peak)
Sensitivity	88 dB (1 kHz - 16 kHz)
Coverage Angle	120° conical, constant directivity
Maximum SPL	107 dB (low-impedance), 113 dB peak
Impedance	8 ohms (bypass mode)
Transformer Taps	60W, 30W, 15W, 7.5W (@70V), plus transformer bypass
Safety Agency	Complies with UL1480, UL-2043, CUL, NFPA-70, NFPA-90A, IEC60849/EN60849
Included Accessories	C-ring support plate, tile support rails, press-in baffle, knockout strain relief, cutout template, paint shield, removable locking connectors
Plenum Usage	Yes, backcan included
