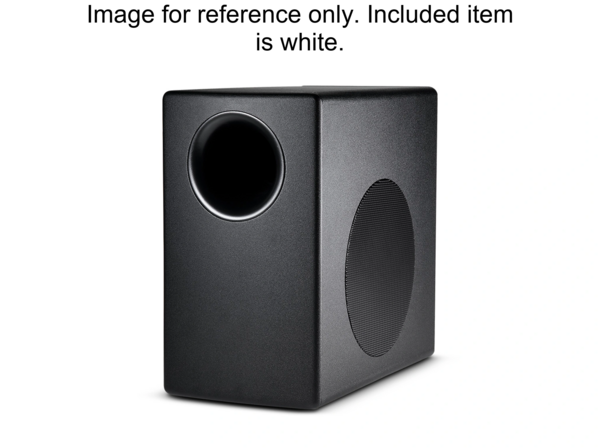

Click image to enlarge
CONTROL 50S/T-WH
COMPACT SURFACT-MOUNT SUBWOOFER WITH BUILT-IN CROSSOVER. 200 MM (8 IN) LONG-THROW WOOFER,
- UM : EA
CONTROL 50S/T-WH is a surface-mount subwoofer designed for subwoofer-satellite loudspeaker systems. It features a 200 mm (8 inch) high-power, long-excursion driver with a high-mass cone. The driver includes a 38 mm (1.5 inch) 4-layer copper voice coil, an aluminum former, and a rubber half-roll surround. The subwoofer delivers 150 watts continuous power with a peak power of 600 watts.
Features:
- Full bandwidth 32 Hz – 20 kHz high fidelity sound
- Selectable 70V/100V for distributed lines or low impedance
- Supports two or four satellite speakers per system
| Frequency Range | 32 Hz – 200 Hz |
|---|---|
| Frequency Response | 50 Hz – 150 Hz |
| Power Capacity | 300W Continuous Program Power (2 hrs), 150W Continuous Pink Noise (2 hrs), 200W Continuous Program Power (100 hrs), 100W Continuous Pink Noise (100 hrs) |
| Sensitivity | 95 dB (near corner), 89 dB (center of wall) |
| Maximum SPL (1m) | 115 dB average, 121 dB peak (near corner), 109 dB average, 115 dB peak (center of wall) |
| Impedance | 8 ohms (bypass/thru mode) |
| Transformer Taps | 80W, 40W, 20W, 10W @ 70V, 8 ohm bypass/thru |
| Drivers | 200 mm polypropylene cone, butyl rubber surround, 38 mm 4-layer copper-clad coil, vented aluminum former |
| Input Connectors | Six removable locking 2-pin connectors with screw-down terminals, max wire 12 AWG |
| Enclosure | Structural plywood (top, bottom, front), MDF (port & terminal panels), painted zinc-plated metal grille |
×
